PE70A1012

Overview

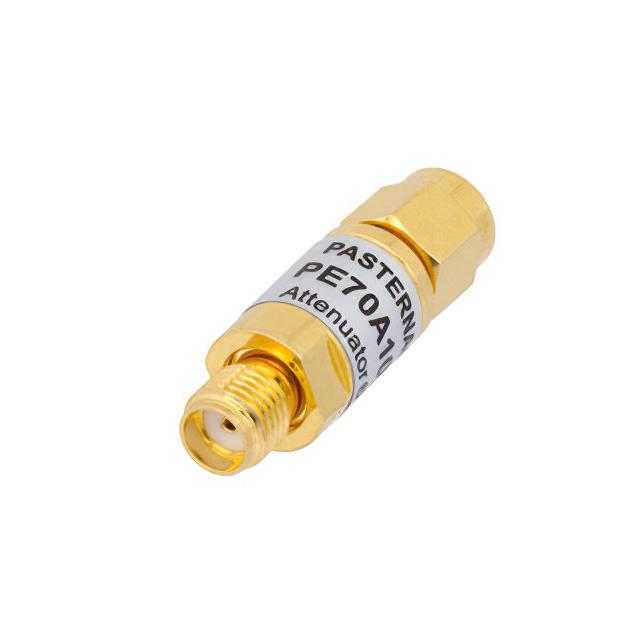

The PE70A1012 is a fixed RF attenuator manufactured by Pasternack. It provides a nominal attenuation of 6 dB with a power rating of 2 Watts. The device operates within a frequency range from 9 kHz to 6 GHz and maintains a 50 Ohm impedance. It utilizes SMA connectors for interface connections.

Feature Summary

• Fixed attenuation value of 6 dB
• Broadband operation up to 6 GHz
• SMA female connector interface

Applications

• RF signal level adjustment in test setups
• Impedance matching in microwave circuits
• Signal conditioning in communication systems

Procurement Notes

Verify the specific datasheet version for precise VSWR and return loss specifications before integration. Confirm that the SMA connector gender matches the system requirements, as variations exist within the product family. Ensure the operating environment stays within the specified temperature range to maintain performance stability.

Selection Notes

Select this component when a precise 6 dB reduction is required across a wide bandwidth up to 6 GHz. Consider the 2 Watt power handling capability for high-power applications. Verify compatibility with existing SMA infrastructure and ensure the physical form factor fits the intended assembly constraints.

Part Context

This part belongs to the Pasternack PE70A series of RF attenuators. It is designed for general-purpose microwave applications requiring stable attenuation characteristics. The series offers various attenuation values and connector types to suit different circuit needs.

Replacement Considerations

Check for exact 6 dB fixed attenuators with SMA connectors and similar power ratings. Verify frequency coverage matches or exceeds 6 GHz. Ensure impedance remains 50 Ohms for proper system integration.
