PE70A1015

Overview

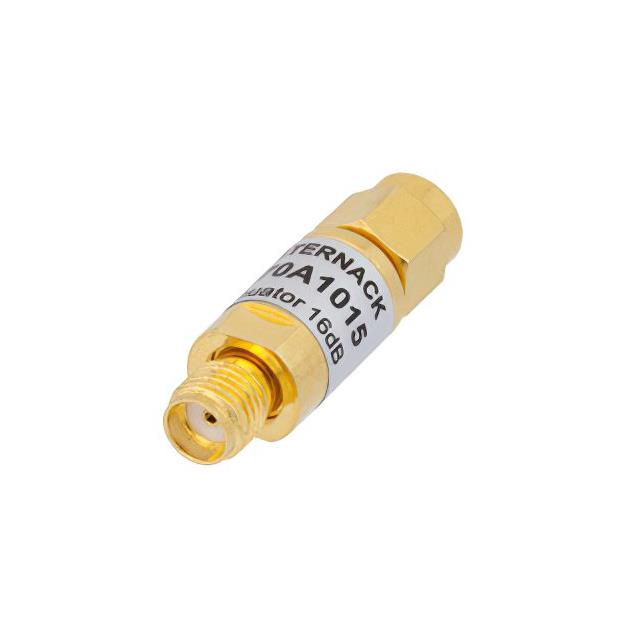

The Pasternack PE70A1015 is a fixed RF attenuator designed for signal level reduction in microwave systems. It provides a nominal attenuation of 16 dB with a frequency range spanning from 9 kHz to 6 GHz. The component operates at a maximum power rating of 2 Watts and maintains a 50 Ohm impedance. Constructed with a brass body, it features SMA male to SMA female connectors. The unit weighs 8.62 grams and supports inline module integration.

Feature Summary

• Provides fixed 16 dB attenuation across a wide frequency spectrum up to 6 GHz
• Supports continuous wave power handling up to 2 Watts
• Features robust brass housing for mechanical stability
• Utilizes standard SMA connector interface for easy system integration

Applications

• RF signal path power reduction
• Microwave test and measurement setups
• Signal conditioning in communication systems
• Attenuation matching between circuit stages

Procurement Notes

Verify the specific part number PE70A1015 against official Pasternack documentation to confirm the 16 dB attenuation value and 6 GHz upper frequency limit. Ensure compatibility with 50 Ohm system impedance and SMA connector gender requirements before procurement. Confirm that the 2 Watt power rating meets application thermal constraints.

Selection Notes

Select this component when a fixed 16 dB loss is required within the 9 kHz to 6 GHz bandwidth. Consider the 2 Watt power handling capacity for high-power signal environments. The SMA interface dictates connector compatibility with existing test equipment or circuit boards. Evaluate the brass construction for durability needs in industrial settings.

Part Context

This model belongs to Pasternack's line of RF fixed attenuators. These components are engineered for precise signal attenuation without active elements. The product series typically includes various attenuation values and frequency ranges to support diverse microwave engineering applications requiring passive signal management.

Replacement Considerations

Identify substitutes with identical 16 dB attenuation, 50 Ohm impedance, and SMA male-female configuration. Verify that alternative parts support the same 6 GHz frequency range and 2 Watt power rating. Ensure physical dimensions and mounting style match the original design constraints.
