PE70A1035

$738.14

Description：10DB MAX ATTN N 100W 3GHZ
Series：-
Mfr：Pasternack
Package：Bulk

SKU:28d2b5029cc8 Category: Attenuators Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10DB MAX ATTN N 100W 3GHZ
Series：-
Mfr：Pasternack
Package：Bulk
Attenuation Value：0dB ~ 10dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：Module, SMA Connectors

Download product information

PE70A1035

Overview

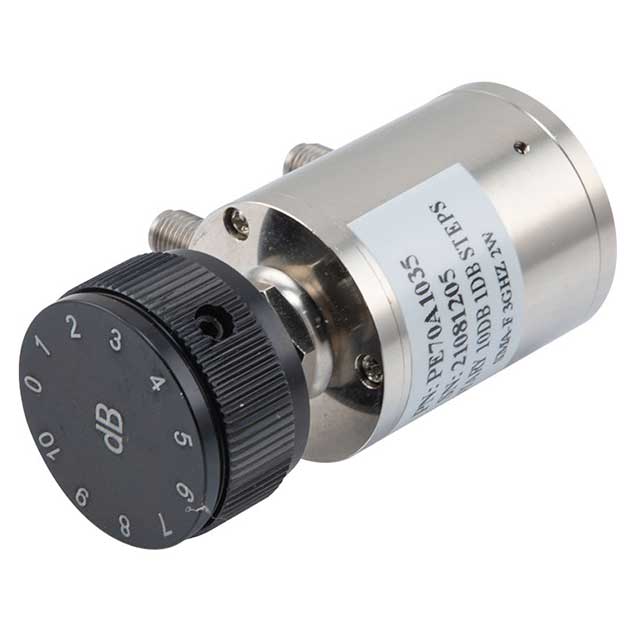

The Pasternack PE70A1035 is a rotary step attenuator featuring SMA female connectors. It provides an attenuation range of 0 to 10 dB with 1 dB step sizes. The device operates within a frequency range of DC to 3 GHz and handles up to 2 Watts of power at 50 Ohms impedance.

Feature Summary

Provides precise 1 dB step attenuation control
Features SMA female connector interfaces
Supports continuous frequency operation from DC to 3 GHz

Applications

RF signal level adjustment in test setups
Attenuation calibration for measurement instruments
Signal conditioning in wireless communication systems

Procurement Notes

Verify the specific datasheet version for the PE70A1035 to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure that the SMA connector gender and mating requirements align with your existing system infrastructure before finalizing procurement orders.

Selection Notes

Select this model when precise, low-step attenuation adjustments are required within the 3 GHz bandwidth. Consider the 2 Watt power rating for appropriate thermal management in high-power RF environments. Verify that the SMA interface matches the connected cable or fixture specifications.

Part Context

This component belongs to Pasternack's series of precision RF attenuators designed for laboratory and industrial applications. It offers reliable signal reduction capabilities with stable performance characteristics across its specified frequency range, supporting accurate RF testing and system integration tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Pasternack models with similar SMA interfaces and attenuation ranges if direct replacement is necessary.
