PE70A1036

Overview

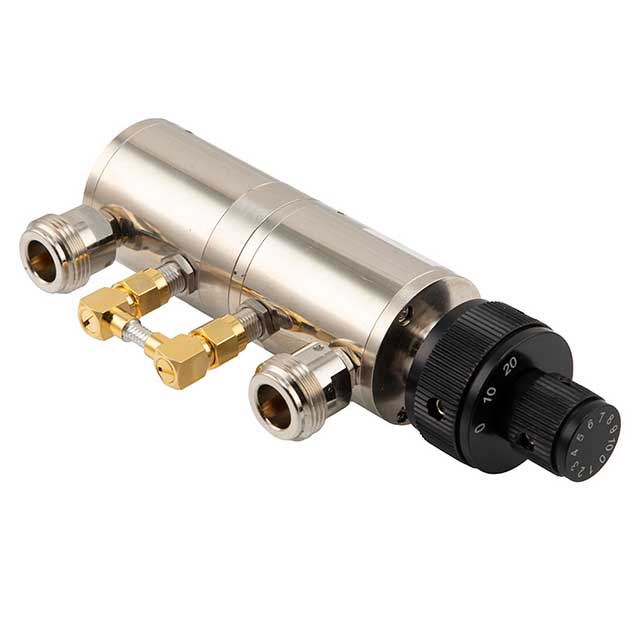

The Pasternack PE70A1036 is a step attenuator module featuring N-type female connectors. It operates within a frequency range of 0 Hz to 3 GHz and provides a maximum attenuation of 30 dB with 1 dB resolution steps. The device is rated for 2 Watts of power handling and maintains a 50 Ohm impedance. Designed as an in-line module, it supports precise signal level adjustments in RF systems.

Feature Summary

• Provides adjustable signal attenuation with 1 dB step resolution up to 30 dB maximum
• Features N-type female connectors for standard RF interconnection
• Operates from DC to 3 GHz with 50 Ohm impedance
• Rated for 2 Watts continuous power handling

Applications

• RF test and measurement instrumentation
• Signal conditioning in communication systems
• Laboratory equipment requiring precise attenuation control

Procurement Notes

Verify the specific datasheet version for the PE70A1036 to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure connector interface compatibility with existing N-type female ports in your system design before integration.

Selection Notes

Select this component when fixed or stepped attenuation is required between 0 Hz and 3 GHz. The 2W power rating suits moderate signal levels. Verify that the N-type female interface matches your system's male connectors for proper mating.

Part Context

This part belongs to Pasternack's line of RF attenuators. It serves as a passive component for reducing signal amplitude in radio frequency circuits. The module form factor allows for easy integration into test setups or permanent installations.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
