PE70A1041N

Overview

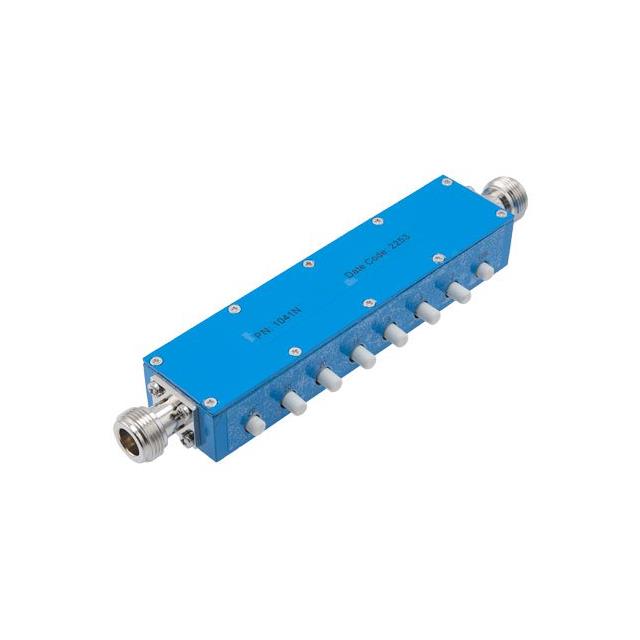

The PE70A1041N is a push-button step attenuator manufactured by Pasternack, designed for RF interconnect applications. It provides an attenuation range of 0 to 90 dB with a precise 1 dB step resolution. The device features N female connectors on both input and output sides, maintaining a 50 Ohm impedance throughout the signal path. It is rated for a maximum power handling of 2 Watts and operates effectively up to a frequency of 3 GHz. This component serves as a reliable in-line module for signal level adjustment in high-frequency systems.

Feature Summary

• Push-button mechanical control for rapid attenuation step selection
• Consistent 50 Ohm impedance matching across the operational bandwidth
• Robust construction suitable for continuous wave power ratings up to 2 Watts

Applications

• RF test and measurement instrumentation setups
• Signal conditioning in telecommunications equipment
• Laboratory calibration and verification procedures

Procurement Notes

Verify the specific connector gender and interface type against system requirements before ordering. Confirm that the 2 Watt power rating and 3 GHz frequency limit align with the intended application parameters. Ensure compatibility with existing N-type cabling infrastructure. Check for any specific environmental operating conditions required by the deployment site.

Selection Notes

Select this model when precise 1 dB step adjustments are necessary within a 0 to 90 dB range. It is appropriate for systems requiring N-type interfaces and 50 Ohm impedance. Consider the physical form factor and push-button mechanism for ease of manual operation in benchtop or rack-mounted environments compared to fixed or continuously variable alternatives.

Part Context

This part belongs to the RF Variable Attenuators series from Pasternack. It falls under the broader category of Connectorized Attenuators. The product is classified as an Interconnect component, specifically designed for signal attenuation tasks in radio frequency circuits. It represents a specialized solution for controlled signal reduction in professional RF engineering contexts.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
