PE70A1045S

Overview

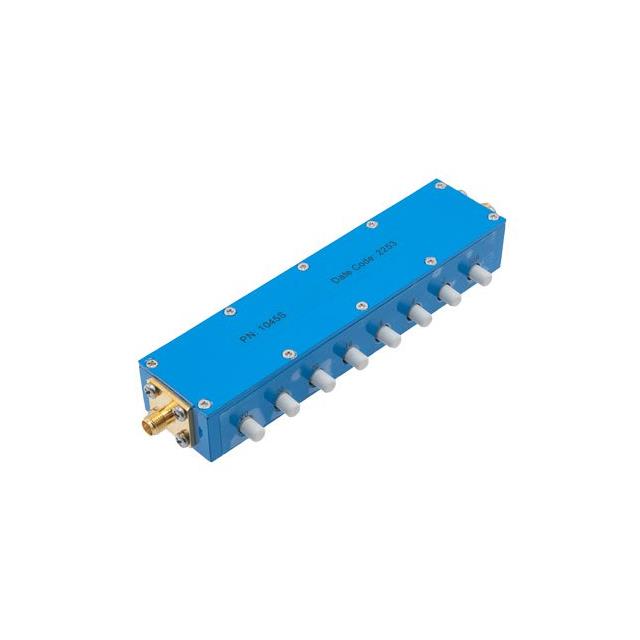

The Pasternack PE70A1045S is a push-button step attenuator featuring SMA female connectors on both input and output ports. It provides an attenuation range of 0 to 90 dB with 1 dB resolution steps. The device operates up to 4 GHz and handles power ratings of 5 Watts.

Feature Summary

• Push-button control for precise step attenuation adjustments
• SMA female interface for standard RF interconnects
• High power handling capability for demanding applications

Applications

• RF signal testing and measurement systems
• Telecommunications equipment calibration
• Laboratory research and development setups

Procurement Notes

Verify the specific connector type and frequency rating against your system requirements before ordering. Confirm that the 5-watt power rating meets your operational needs. Ensure compatibility with existing SMA interfaces in your setup.

Selection Notes

Choose this model when precise 1 dB step control is required up to 90 dB. It suits applications needing high power handling at frequencies up to 4 GHz. Consider the SMA interface for standard RF connections.

Part Context

This component belongs to the RF variable attenuators series by Pasternack. It is designed for interconnect applications requiring reliable signal attenuation. The product line focuses on providing accurate and durable solutions for RF engineering tasks.

Replacement Considerations

Check for exact SMA female-to-female configuration and 4 GHz frequency limit. Verify 5-watt power rating matches your system. Ensure 1 dB step resolution is compatible with your control requirements.
