PE70A2000

Overview

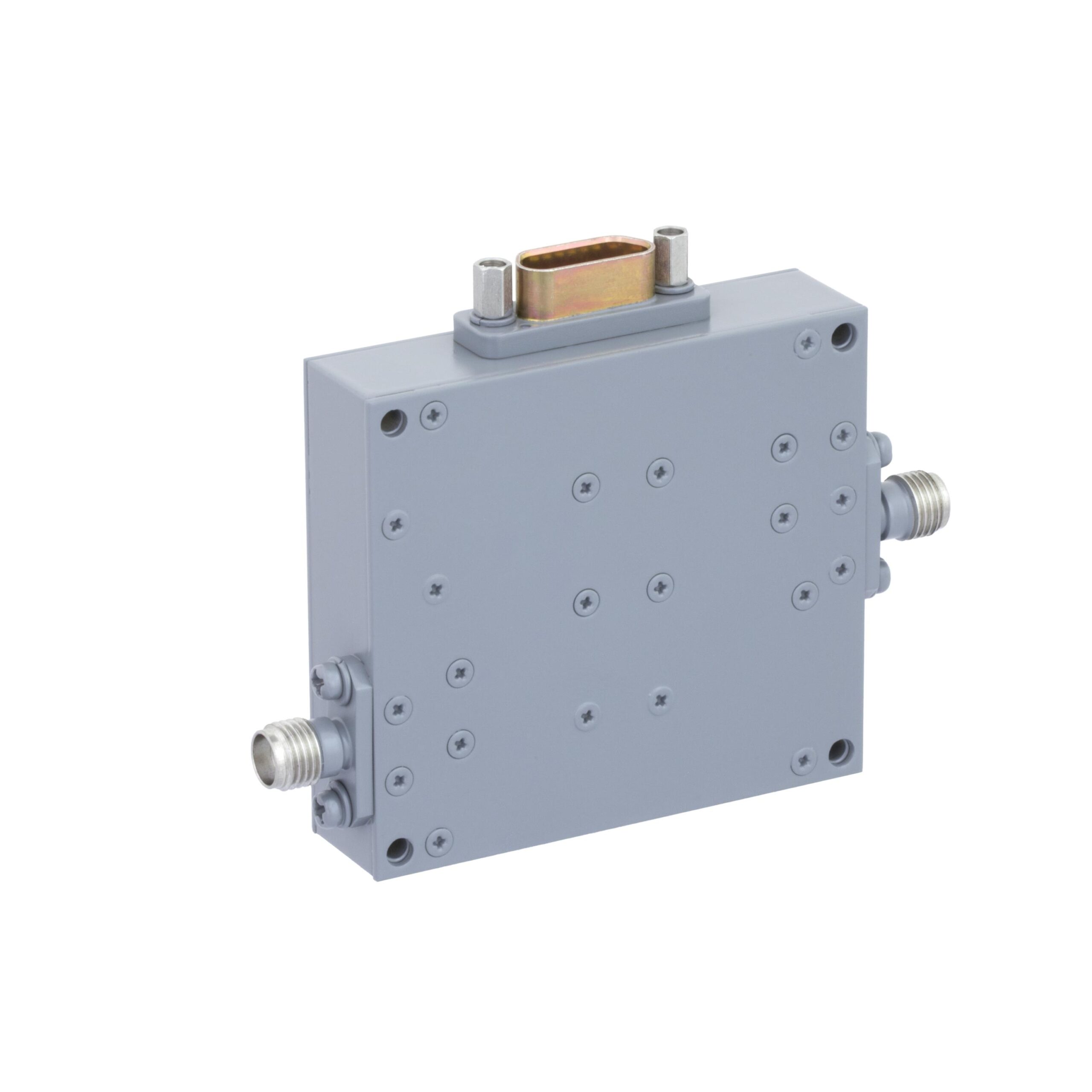

The PE70A2000 is an analog controlled pin diode attenuator manufactured by Pasternack. It provides a total attenuation range of 60 dB and operates within a frequency band from 2 GHz to 4 GHz. The device functions over a temperature range of -55°C to +85°C. It utilizes a 48-LQFP7x7 package for integration into electronic systems.

Feature Summary

• Analog control mechanism for variable attenuation
• Pin diode technology implementation
• Wide operational temperature capability

Applications

• RF signal conditioning circuits
• Test and measurement instrumentation
• Communication system calibration

Procurement Notes

Verify the specific datasheet version for the PE70A2000 to confirm exact electrical parameters such as insertion loss, VSWR, and control voltage ranges. Ensure the 48-LQFP7x7 package dimensions match the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when analog control of RF attenuation is required within the 2-4 GHz spectrum. Consider the LQFP package constraints and thermal management needs for operation in extreme environments ranging from -55°C to +85°C.

Part Context

This part belongs to the Pasternack RF Variable Attenuators series. It is distinct from step or programmable models, offering continuous analog adjustment via pin diode architecture for precise signal level control in high-frequency applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
