PE70A2001

Overview

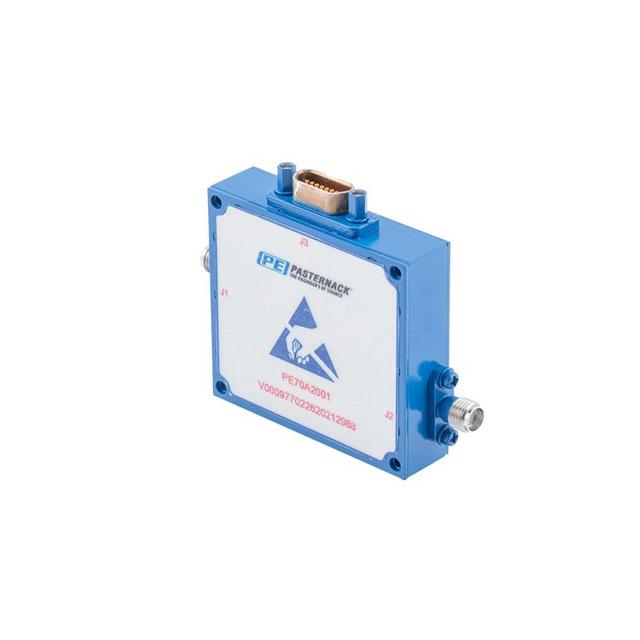

The Pasternack PE70A2001 is an RF attenuator module designed for signal control in high-frequency applications. It provides a variable attenuation range from 0 dB to 60 dB, allowing precise adjustment of signal strength. The device operates within a frequency range of 4 GHz to 8 GHz, ensuring performance across the C and X bands. It utilizes SMA female connectors for reliable interconnection with standard RF systems. This module is engineered to handle specific power levels while maintaining low insertion loss and stable VSWR characteristics throughout its tuning range.

Feature Summary

• Provides continuous variable attenuation from 0 dB to 60 dB for precise signal level control
• Operates effectively within the 4 GHz to 8 GHz frequency spectrum
• Features SMA female connectors for standardized RF system integration

Applications

• RF test and measurement equipment requiring adjustable signal levels
• Wireless communication systems operating in C and X bands
• Radar systems needing precise attenuation control

Procurement Notes

Verify the specific datasheet version for exact electrical parameters such as maximum power handling and VSWR limits before integration. Confirm connector gender and interface compatibility with existing PCB or cable assemblies. Ensure environmental ratings match operational conditions. Check for any recent manufacturing updates that may affect pinout or mounting requirements.

Selection Notes

Select this model when variable attenuation up to 60 dB is required within the 4-8 GHz band. Compare against fixed attenuators if only static reduction is needed. Consider thermal management capabilities if operating near maximum power ratings. Evaluate connector type compatibility to avoid adapter usage which may impact performance at higher frequencies.

Part Context

This component belongs to Pasternack's RF attenuator series, focusing on modular solutions for signal conditioning. It complements fixed and step attenuators by offering continuous adjustability. The product line targets industries requiring reliable RF signal management in compact form factors.

Replacement Considerations

Direct substitutes include other Pasternack modules with similar attenuation ranges and frequency specs, such as those in the PE70A series. Verify mechanical dimensions and connector types to ensure physical compatibility. Cross-reference electrical specifications like max power and VSWR to maintain system integrity.
