PE70A2002

Overview

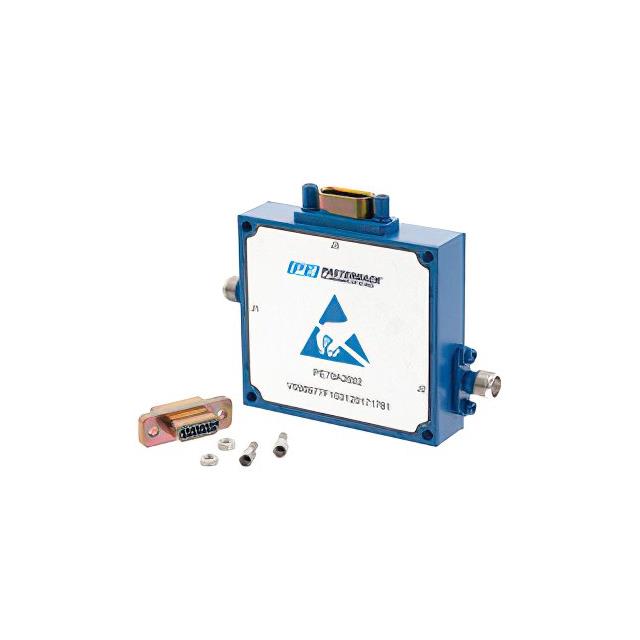

The PE70A2002 is a voltage variable PIN diode attenuator module manufactured by Pasternack. It provides an attenuation range of 0 to 60 dB within the frequency band of 6 GHz to 12 GHz. The device utilizes SMA female connectors for RF signal transmission and reception. Control is managed via a 15-pin D-Subminiature interface, allowing for precise adjustment of signal levels through applied voltage. This component is designed for applications requiring high-frequency signal attenuation with electronic control capabilities.

Feature Summary

• Voltage-controlled operation using PIN diode technology for rapid attenuation adjustments
• Integrated module design with SMA female connectors for standard RF interfacing
• Digital control interface utilizing a 15-pin D-Subminiature connector for external voltage regulation

Applications

• High-frequency test and measurement equipment requiring variable signal attenuation
• Wireless communication systems operating in the 6-12 GHz spectrum
• Radar and electronic warfare systems needing precise signal level control

Procurement Notes

Verify the specific datasheet version and electrical characteristics directly from the manufacturer's official documentation before procurement. Confirm that the 15-pin D-Subminiature control interface matches your system's wiring requirements. Ensure the operating voltage range aligns with your power supply specifications to prevent damage to the internal PIN diode circuitry.

Selection Notes

Select this model when voltage-variable attenuation is required rather than fixed or mechanical step attenuation. Consider the SMA connector type and 15-pin D-Sub control interface compatibility with existing infrastructure. Evaluate the 6 GHz to 12 GHz frequency range against your application's operational bandwidth to ensure adequate performance and insertion loss characteristics.

Part Context

This component belongs to the Pasternack RF Variable Attenuators series, specifically designed for high-frequency applications. It represents a specialized solution for dynamic signal management in microwave and millimeter-wave environments, distinguishing itself from fixed attenuators by offering electronically adjustable attenuation levels via an external control voltage.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. When seeking alternatives, verify that any replacement maintains the 6-12 GHz frequency range, 0-60 dB attenuation capability, and compatible SMA/15-pin D-Sub interface specifications.
