PE70A2006

Overview

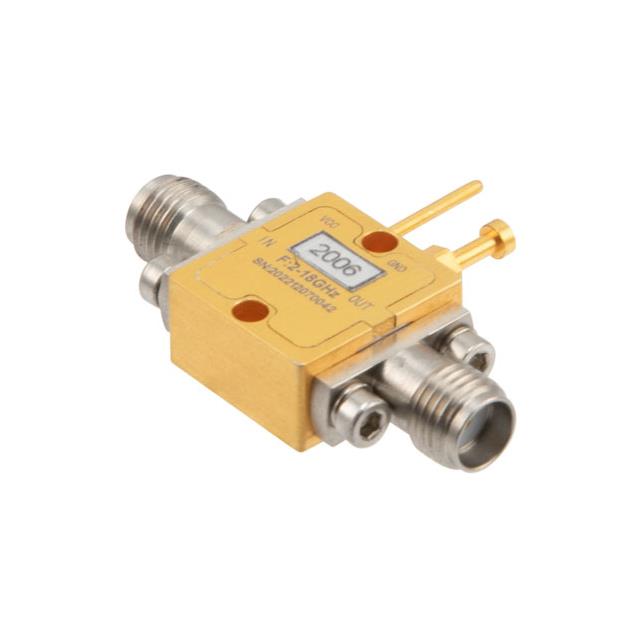

The Pasternack PE70A2006 is a reflective voltage-controlled attenuator designed for RF applications spanning 2 GHz to 18 GHz. It provides a maximum attenuation of 30 dB with field-replaceable SMA female connectors. The device utilizes an active control mechanism, allowing precise amplitude reduction of incoming signals through external voltage adjustment. This component ensures high reliability in demanding environments and supports flexible integration into test and measurement systems requiring dynamic signal level management across the specified frequency range.

Feature Summary

• Active voltage-controlled operation for dynamic signal attenuation
• Reflective design architecture suitable for specific circuit topologies
• Field-replaceable SMA female connectors for simplified maintenance
• High-reliability construction for consistent performance

Applications

• RF test and measurement instrumentation
• Dynamic signal level control in communication systems
• Amplitude modulation circuits
• Automated testing equipment (ATE)

Procurement Notes

Verify the specific control voltage requirements and interface compatibility before procurement. Confirm that the SMA connector type matches the system infrastructure. Ensure the operating environment remains within the specified thermal limits. Check for any required accessories or mounting hardware not included in the standard package. Validate supply chain authenticity through authorized channels.

Selection Notes

Select this model when variable attenuation between 0 and 30 dB is required up to 18 GHz. Consider the reflective nature of the design for impedance matching implications. Evaluate the need for field-replaceable connectors versus fixed solutions. Compare power handling capabilities against system signal levels. Assess control interface compatibility with existing voltage sources.

Part Context

This component belongs to Pasternack's portfolio of RF variable attenuators. It serves as an active alternative to passive step attenuators, offering continuous adjustability rather than discrete steps. The product line emphasizes reliability and ease of integration into complex RF setups. It complements other interconnect components by providing precise signal management capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available.
