PE70A5006

Overview

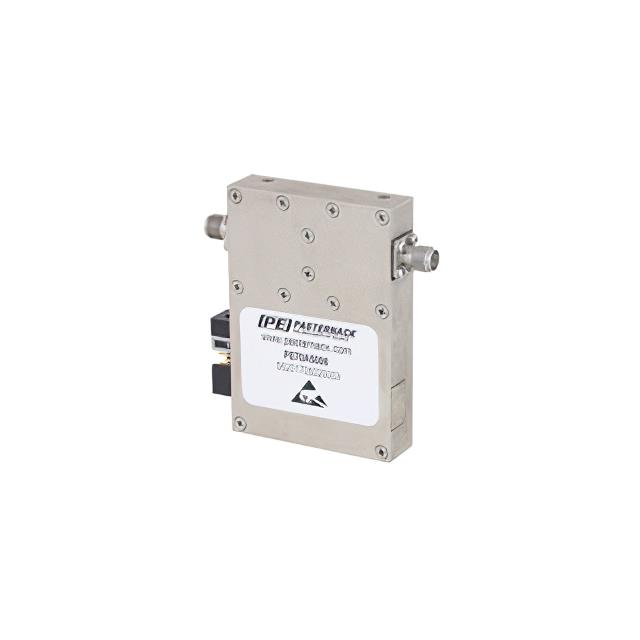

The Pasternack PE70A5006 is a TTL-controlled programmable step attenuator featuring SMA female connectors. It provides a total attenuation range of 0 to 63 dB with 1 dB resolution steps. The device operates within a frequency range of 30 MHz to 3 GHz and maintains a 50 Ohm impedance system.

Feature Summary

• TTL logic interface for digital control of attenuation levels
• Programmable step adjustment with 1 dB resolution increments
• SMA female connectorized design for RF interconnect applications

Applications

• RF signal path power management in test equipment
• Automated measurement systems requiring precise attenuation control
• Communication system signal level adjustment

Procurement Notes

Verify the specific datasheet version and connector gender compatibility before ordering. Confirm that the TTL voltage levels match your control circuitry requirements. Ensure the operating frequency range meets your application needs, as performance may vary outside the specified 30 MHz to 3 GHz band. Check for any recent manufacturing updates or pinout changes.

Selection Notes

Select this model when digital control over attenuation is required rather than manual adjustment. Consider the 1 dB step size for applications needing fine-grained signal reduction. Evaluate the SMA interface against your existing cabling infrastructure. Compare with other programmable attenuators if higher frequency operation or different connector types are necessary.

Part Context

This component belongs to Pasternack's line of RF variable attenuators designed for interconnect applications. It serves as a bridge between analog RF signals and digital control systems, enabling automated gain or loss adjustments in complex RF setups without manual intervention.
