PE70A5016

Overview

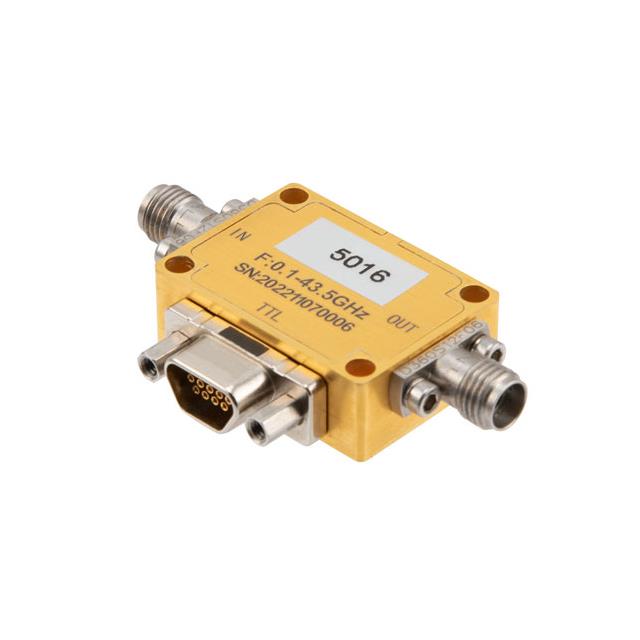

The PE70A5016 is a bidirectional RF attenuator module featuring a 2.92mm interface with a typical attenuation of 16.5 dB and 0.5 dB step sizes. It operates within a frequency range of 100 MHz to 40 GHz at a 50 Ohm impedance. The device utilizes an aluminum body construction.

Feature Summary

• Bidirectional signal attenuation capability
• Digital step control functionality
• Aluminum housing construction

Applications

• RF test and measurement systems
• Microwave circuit calibration
• Signal level adjustment in high-frequency setups

Procurement Notes

Verify the specific datasheet version for the PE70A5016 to confirm detailed electrical tolerances and mechanical dimensions. Ensure compatibility with 2.92mm connector interfaces in the target system design before finalizing procurement decisions.

Selection Notes

Select this component for applications requiring precise digital attenuation steps between 100 MHz and 40 GHz. The 16.5 dB nominal value and 0.5 dB resolution suit high-frequency signal management needs.

Part Context

This part belongs to Pasternack's line of programmable step attenuators. It serves as a specialized microwave component designed for integration into complex RF environments requiring adjustable signal strength.

FAQ

What is the operating frequency range?

The PE70A5016 operates from 100 MHz to 40 GHz.

What is the step size resolution?

The device features a 0.5 dB step size resolution.
