PE70A6000

Overview

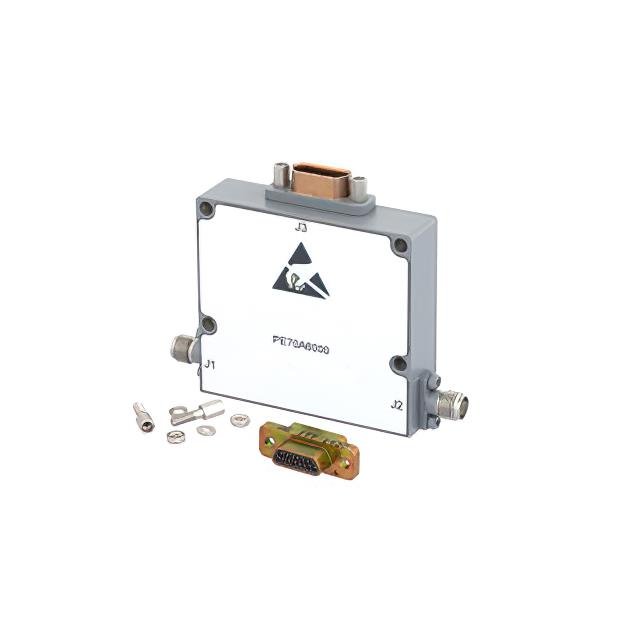

The Pasternack PE70A6000 is a precision RF step attenuator module designed for high-frequency applications. It provides an attenuation range from 0 dB to 60 dB with a fine resolution of 0.06 dB. The device operates within a frequency range of 500 MHz to 18 GHz and utilizes SMA female connectors for signal interfacing. It is rated for 50 Ohm impedance systems, ensuring compatibility with standard RF test and measurement setups.

Feature Summary

• Provides precise digital step control with 0.06 dB resolution for accurate signal level adjustment
• Operates at microwave frequencies up to 18 GHz using SMA female interfaces
• Designed as an inline module for integration into RF signal chains

Applications

• RF test and measurement instrumentation
• Microwave communication system calibration
• Signal path attenuation in laboratory environments

Procurement Notes

Verify the specific datasheet version and connector gender configuration before ordering. Confirm that the operating frequency range of 500 MHz to 18 GHz aligns with your system requirements. Ensure SMA female mating compatibility with existing cabling infrastructure to maintain signal integrity.

Selection Notes

Select this model when fine attenuation steps are critical for signal accuracy. The 0.06 dB resolution supports high-precision measurements. Consider the 18 GHz upper frequency limit for wideband microwave applications. Verify power handling specifications against system peak levels.

Part Context

This component belongs to the Pasternack RF variable attenuator series. It serves as a specialized inline module for controlling signal amplitude in high-frequency circuits. The design focuses on maintaining performance across the microwave spectrum while providing granular control over attenuation levels.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other Pasternack models with similar frequency ranges and resolution requirements if replacement is necessary.
