PE70A6001

Overview

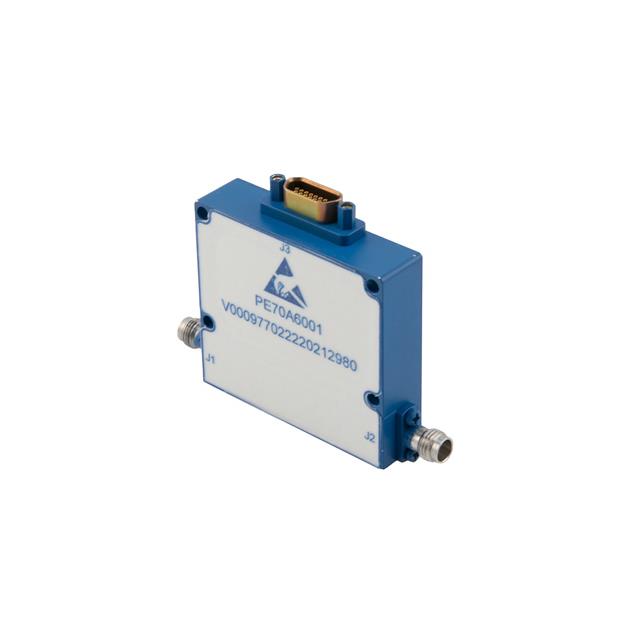

The PE70A6001 is a 30 dB programmable attenuator manufactured by Pasternack. It features a 10-bit TTL-controlled design with step resolution as low as 0.03 dB. The device operates within a frequency range of 18 GHz to 40 GHz. It utilizes 2.4mm female connectors for both input and output interfaces. The unit is designed for a 50 Ohm system impedance. This pin diode attenuator provides precise signal attenuation control suitable for high-frequency applications.

Feature Summary

• 10-bit programmable attenuation control via TTL interface
• High-resolution step adjustment capability down to 0.03 dB
• Operates across the 18 GHz to 40 GHz frequency spectrum
• Utilizes 2.4mm female-to-female connector configuration

Applications

• Microwave test and measurement equipment
• Wireless communication systems
• Radar signal processing
• Satellite communication links

Procurement Notes

Verify the specific datasheet version when ordering, as technical specifications may be updated by the manufacturer. Confirm that the TTL control voltage levels match your system requirements before integration. Ensure that the 2.4mm connector compatibility is validated for your existing infrastructure. Request the official product specification document from Pasternack or authorized distributors to confirm current manufacturing status and detailed electrical parameters prior to final procurement decisions.

Selection Notes

Select this component when precise, digitally controlled attenuation is required in the 18-40 GHz range. The 10-bit resolution offers fine-grained control compared to standard step attenuators. Consider the 2.4mm interface size constraints for your PCB or module layout. Evaluate the TTL control logic compatibility with your microcontroller or FPGA outputs. Assess thermal management needs based on the expected power dissipation during operation at maximum frequencies.

Part Context

This model belongs to Pasternack's line of RF variable attenuators. It is part of a series designed for high-frequency microwave applications. The product family typically includes various connector types and attenuation ranges. Pasternack specializes in interconnect solutions for RF and microwave industries. This specific model focuses on high-frequency precision using pin diode technology.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Pasternack directly for cross-reference information. Verify mechanical dimensions and pinout compatibility if considering alternative manufacturers. Ensure that any replacement meets the same 18-40 GHz frequency and 0.03 dB step resolution requirements.
