PE70A8005

Overview

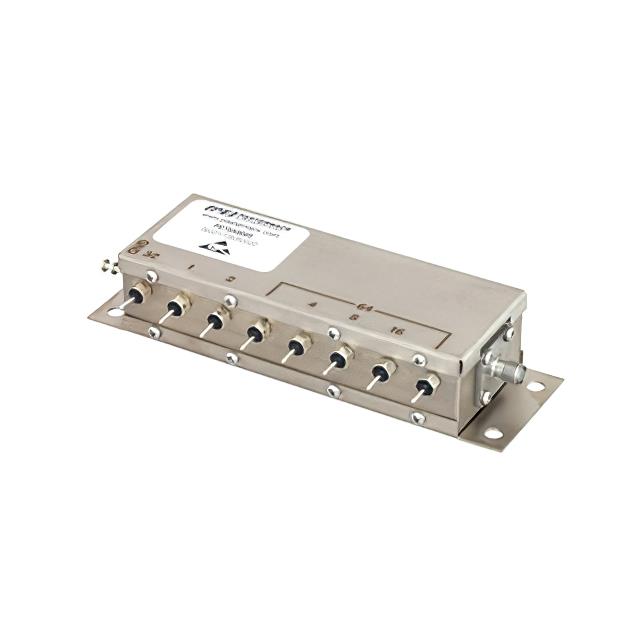

The PE70A8005 is a relay-controlled programmable attenuator manufactured by Pasternack. It provides a maximum attenuation of 127 dB with 1 dB step resolution across eight bits. The device operates up to 1.5 GHz and utilizes SMA female connectors for interconnection. Designed for field deployment, it supports +12V control voltage requirements.

Feature Summary

• Relay-controlled programmable architecture
• High-resolution 1 dB step attenuation
• SMA female connector interface

Applications

• RF test and measurement systems
• Signal processing equipment
• Communication system calibration

Procurement Notes

Verify the specific datasheet version and electrical specifications directly from the manufacturer before procurement. Confirm that the required control voltage aligns with the +12V specification. Ensure the SMA female interface compatibility matches the system design requirements. Check for any regional distribution restrictions or availability constraints prior to ordering.

Selection Notes

Select this component when high-precision programmable attenuation is required in the 1.5 GHz range. The 127 dB range and 1 dB steps suit applications needing fine signal adjustment. Consider the relay-based switching speed if timing is critical. Verify physical size and weight constraints against the system enclosure.

Part Context

This part belongs to the RF Variable Attenuators series by Pasternack. It falls under the Connectorized Attenuators subcategory. The product is designed for reliable performance in wireless and RF integrated circuit environments. It represents a specialized solution for precise signal level management.

FAQ

What is the maximum operating frequency?

The maximum operating frequency is 1.5 GHz.

How many bits does the attenuator have?

It is an 8-bit programmable attenuator.
