PE70A9002

Overview

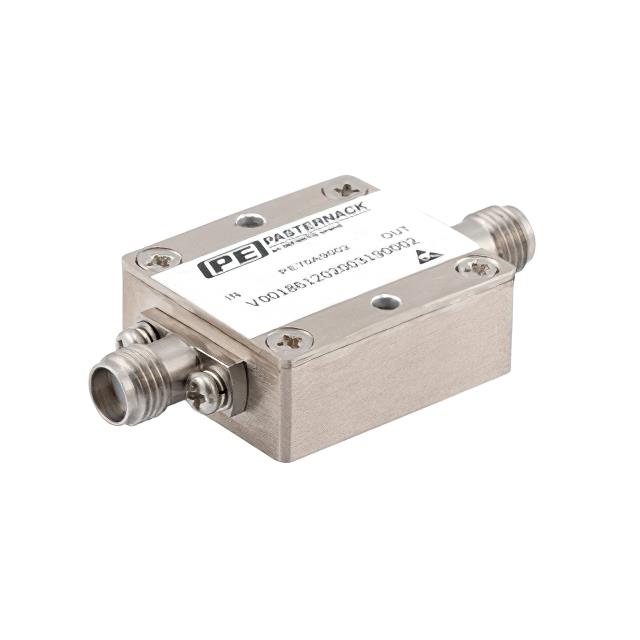

The PE70A9002 is a positive slope gain equalizer manufactured by Pasternack. It operates within a frequency range of 500 MHz to 2 GHz. The device provides gain equalization between 5 and 7 dB. Insertion loss ranges from 1.8 to 2.5 dB. It utilizes SMA connectors for interface connections.

Feature Summary

• Positive slope gain equalization design
• Broadband operation from 500 MHz to 2 GHz

Applications

• RF signal chain compensation
• System gain flattening
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for precise VSWR and power handling specifications. Confirm connector gender and cable assembly requirements if applicable. Ensure environmental ratings match the deployment conditions. Check for RoHS compliance documentation prior to integration.

Selection Notes

Select this component when a positive slope response is required to counteract system roll-off. Compare insertion loss values against link budget constraints. Evaluate frequency coverage needs relative to the 500 MHz to 2 GHz operational window. Consider physical size and mounting options for the enclosure.

Part Context

This part belongs to the Pasternack RF and Wireless product line. It is categorized as a Gain Equalizer. The series focuses on passive RF components for signal conditioning. It supports applications requiring stable amplitude response across wide bandwidths.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
