PE70A9006

Overview

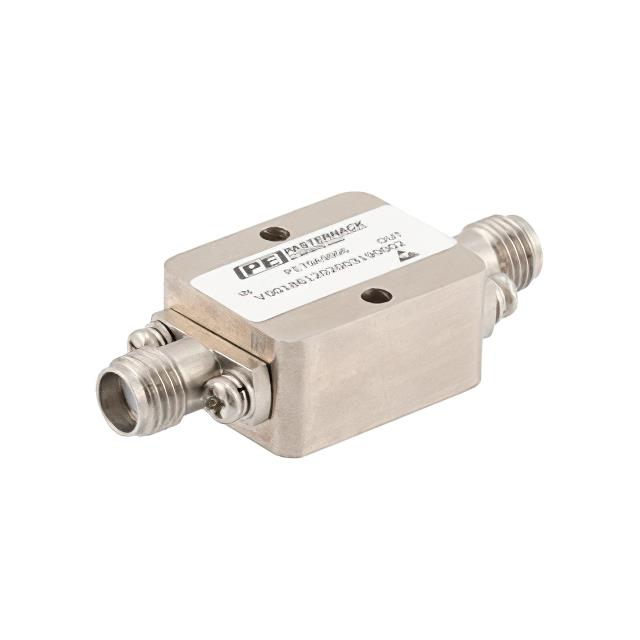

The PE70A9006 is a positive slope gain equalizer manufactured by Pasternack. It operates within a frequency range of 2 GHz to 6 GHz. The device provides gain equalization between 1.5 dB and 2.5 dB. Insertion loss is specified at 1 dB to 2 dB. This component is designed for RF and wireless applications requiring signal level correction.

Feature Summary

• Provides positive slope gain equalization
• Operates in the 2 GHz to 6 GHz frequency band
• Designed for signal level correction

Applications

• RF system calibration
• Wireless communication link adjustment
• Signal path equalization

Procurement Notes

Verify the specific gain equalization value (1.5 to 2.5 dB) and insertion loss (1 to 2 dB) against your design requirements. Confirm the operating frequency range matches the 2 GHz to 6 GHz specification. Ensure compatibility with your existing RF infrastructure before ordering.

Selection Notes

Select this component when a positive slope response is required to compensate for system losses. Consider the 1 to 2 dB insertion loss impact on overall chain budget. Verify that the 2 to 6 GHz bandwidth covers all operational frequencies.

Part Context

This part belongs to Pasternack's RF and Wireless product line. It serves as a specialized passive component for adjusting signal amplitude characteristics. The manufacturer specializes in microwave and millimeter wave solutions.

Replacement Considerations

No public substitute part numbers are documented for this specific model.

FAQ

What is the frequency range?

The operating frequency range is 2 GHz to 6 GHz.

What is the insertion loss?

The insertion loss is between 1 dB and 2 dB.
