PE70A9007

Overview

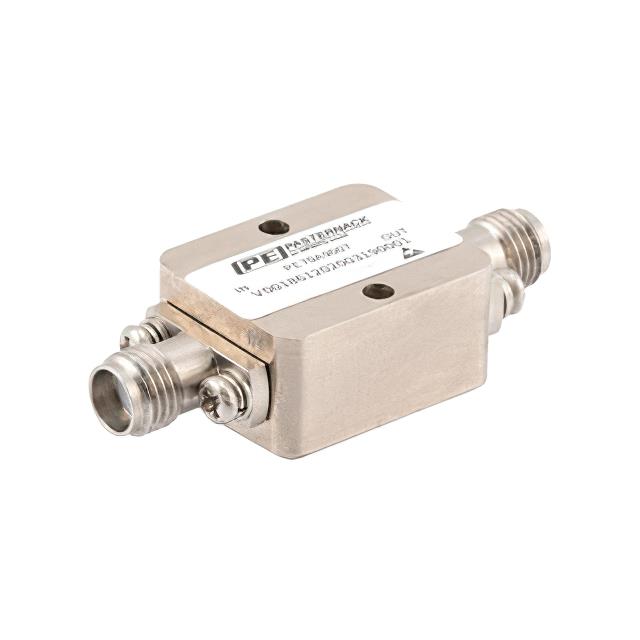

The PE70A9007 is a positive slope equalizer manufactured by Pasternack, designed for RF and wireless applications. It operates up to a frequency of 2 GHz. This component functions as an active or passive network element intended to compensate for signal loss characteristics that vary with frequency, specifically addressing higher frequency attenuation in transmission paths. The device is categorized under RF interconnects and signal conditioning components within the manufacturer's portfolio.

Feature Summary

• Provides positive slope gain response to counteract high-frequency loss
• Operates within a frequency range extending to 2 GHz
• Designed for integration into RF signal chains

Applications

• RF test and measurement setups requiring frequency compensation
• Wireless communication system signal conditioning
• Broadband transmission line loss correction

Procurement Notes

Verify the specific datasheet version and electrical performance curves directly from Pasternack official documentation before procurement. Confirm impedance matching requirements and power handling capabilities relative to your system design. Ensure compatibility with existing connector types and mounting configurations. Cross-reference part numbers to avoid confusion with similar equalizer models in the PE70 series.

Selection Notes

Select this component when application requires compensation for frequency-dependent insertion loss increasing with frequency. Evaluate the required slope magnitude and bandwidth against the PE70A9007 specifications. Consider system noise figure impact if the equalizer introduces gain. Verify operational frequency limits do not exceed 2 GHz. Compare with fixed attenuators if loss reduction rather than slope correction is needed.

Part Context

The PE70A9007 belongs to Pasternack's RF and wireless component lineup, specifically within the category of signal equalizers. It complements other passive and active RF components such as attenuators, cables, and connectors. This model addresses specific signal integrity challenges in broadband systems where cable and connector losses are not flat across the spectrum.

FAQ

What is the maximum operating frequency of the PE70A9007?

The PE70A9007 is rated for operation up to 2 GHz.

What type of equalization does the PE70A9007 provide?

It provides positive slope equalization, meaning it offers higher gain at higher frequencies to compensate for lossy components.
