PE70A9008

$358.90

Description：Positive Slope Equalizer, 2 GHz
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:5ec5bcc87c46 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Positive Slope Equalizer, 2 GHz
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Linear Equalizer
Frequency：2GHz ~ 12GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：SMA In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE70A9008

Overview

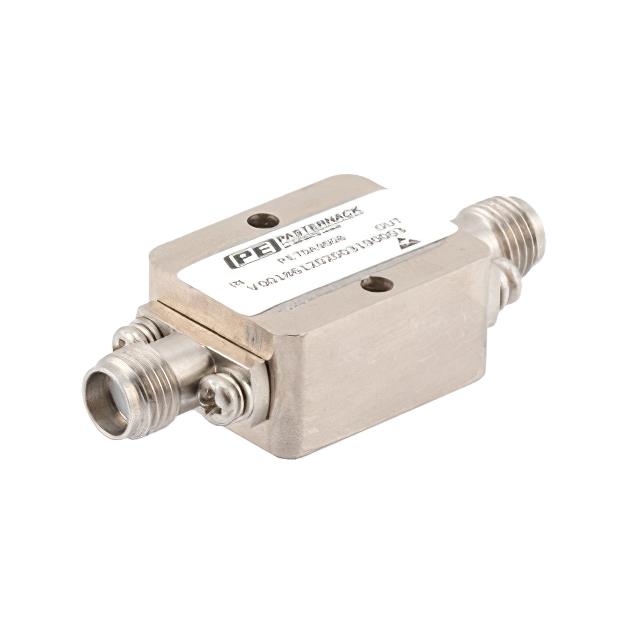

The PE70A9008 is a positive slope equalizer manufactured by Pasternack, designed for RF and wireless applications. It operates within a frequency range of 2 GHz to 12 GHz. The component provides a fixed equalizing value of 3.5 dB with a maximum insertion loss of 1.5 dB. It features field-replaceable SMA connectors and supports a maximum input power (Pin) of +30 dBm. This device is engineered to compensate for signal attenuation characteristics in high-frequency systems.

Feature Summary

Provides a fixed positive slope equalization of 3.5 dB across the operational bandwidth
Features low insertion loss rated at a maximum of 1.5 dB
Supports high input power handling up to +30 dBm
Utilizes field-replaceable SMA connector interfaces

Applications

RF system signal compensation
Wireless communication link equalization
High-frequency test and measurement setups

Procurement Notes

Verify the specific datasheet version and connector compatibility before integration. Confirm that the operating environment does not exceed the +30 dBm power limit. Ensure SMA interface requirements match the existing system architecture. Cross-reference technical specifications with current manufacturer documentation to ensure compliance with design parameters.

Selection Notes

Select this component when a fixed positive slope correction is required between 2 GHz and 12 GHz. Consider the 3.5 dB equalization value and 1.5 dB loss against system budget constraints. Evaluate the +30 dBm power rating for high-power application suitability. Verify SMA connector type matches the circuit design requirements.

Part Context

This part belongs to Pasternack's RF equalizer series, specifically designed for positive slope compensation. It addresses signal integrity issues in wideband RF systems where frequency-dependent loss occurs. The fixed nature of the equalization makes it suitable for stable environments requiring consistent performance without variable adjustment.
