Product Detailed Parameters
- Description：POSITIVE SLOPE EQUALIZER, 6 GHZ
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：6GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

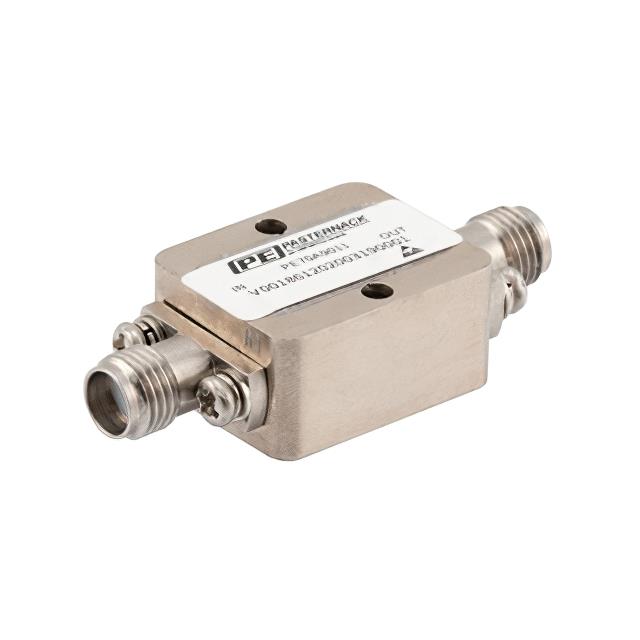

The Pasternack PE70A9011 is a positive slope equalizer designed for RF and wireless applications. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a fixed equalizing value of 3 dB with a maximum insertion loss of 1.5 dB. It supports a maximum input power of +30 dBm. The component features field-replaceable SMA connectors, facilitating maintenance and integration into high-frequency signal processing systems.
Feature Summary
- Provides positive slope signal equalization across the specified microwave frequency band
- Features a fixed 3 dB equalizing value to compensate for system response characteristics
- Incorporates field-replaceable SMA connectors for simplified maintenance and assembly
Applications
- RF signal chain compensation in communication systems
- Microwave test and measurement equipment calibration
- High-frequency circuit board interconnect equalization
Procurement Notes
Verify the specific datasheet version for the PE70A9011 to confirm connector polarity and exact mechanical dimensions prior to procurement. Ensure that the receiving system can accommodate the +30 dBm maximum power rating and that the SMA interface matches the existing infrastructure requirements for seamless integration.
Selection Notes
Select this component when a fixed positive slope correction is required between 6 GHz and 18 GHz. Consider the 1.5 dB insertion loss impact on overall system gain. Verify compatibility with SMA interfaces and ensure thermal management supports the specified power handling capabilities for reliable long-term operation in RF environments.
Part Context
This component belongs to Pasternack's RF Wireless Miscellaneous category, specifically focusing on active or passive equalization solutions. It addresses signal integrity issues in high-frequency bands where cable losses or filter responses may cause amplitude droop, ensuring flat system performance across the operational spectrum.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate other Pasternack equalizers based on matching frequency ranges, equalization values, and connector types to ensure functional equivalence in the target application.
