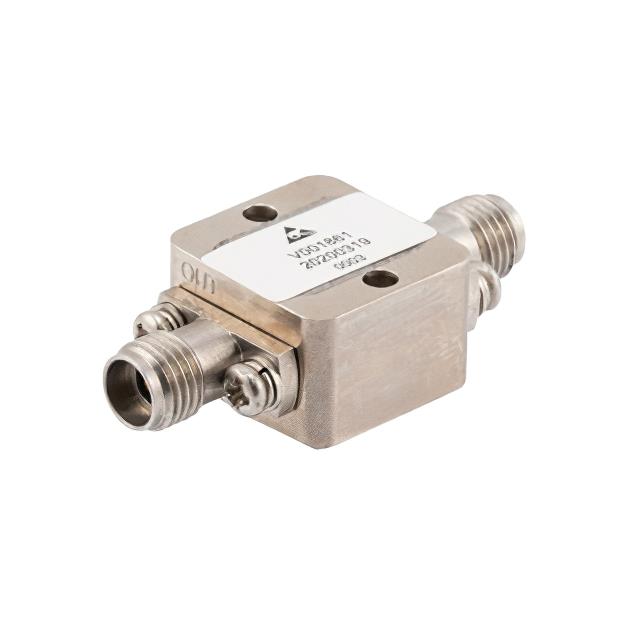

PE70A9015

Overview

The PE70A9015 is a linear equalizer manufactured by Pasternack, designed for general-purpose RF applications. It operates within a frequency range of 18 GHz to 40 GHz and utilizes SMA connectors. The component provides gain equalization between 3 dB and 4.8 dB, with an insertion loss ranging from 2 dB to 4 dB.

Feature Summary

• Linear equalization function for signal amplitude correction
• Broadband operation covering 18 GHz to 40 GHz
• SMA connector interface for standard integration

Applications

• High-frequency test and measurement systems
• Microwave communication link compensation
• Signal integrity maintenance in broadband RF circuits

Procurement Notes

Verify the specific datasheet version for precise attenuation tolerances and VSWR limits before integration. Confirm that SMA connector mating cycles meet system requirements. Ensure environmental ratings align with operational conditions. Cross-reference electrical specifications against current design constraints to guarantee performance stability.

Selection Notes

Select this component when fixed gain equalization is required across the 18-40 GHz spectrum. Consider the 2-4 dB insertion loss impact on overall system noise figure. Evaluate SMA compatibility with existing board layouts. Assess thermal management needs based on power handling capabilities defined in official documentation.

Part Context

This unit belongs to Pasternack's portfolio of microwave interconnect and signal conditioning components. It serves as a passive device to flatten frequency response curves in high-speed digital or analog transmission paths. The product supports designs requiring stable gain characteristics over wide bandwidths without active power supplies.

Replacement Considerations

No public confirmed substitute part numbers are available.
