PE70A9016

Overview

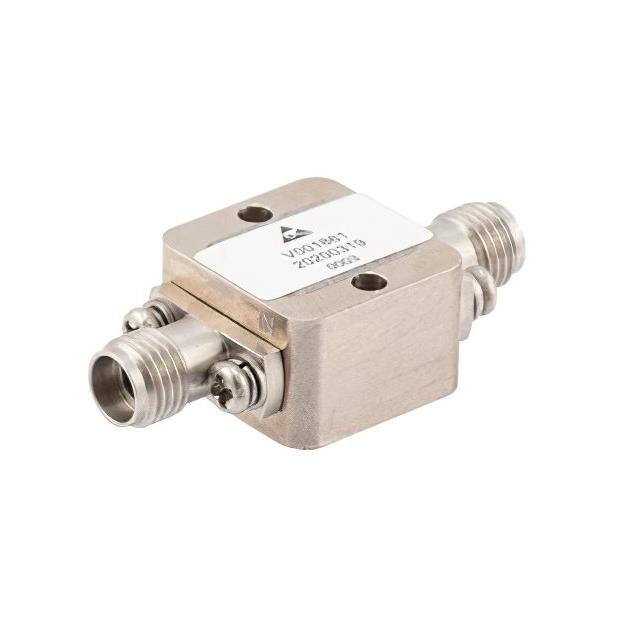

The Pasternack PE70A9016 is a positive slope equalizer designed for RF and wireless applications. It operates within a frequency range of 18 GHz to 40 GHz. The component provides a fixed equalizing value of 4.8 dB with a maximum insertion loss of 2 dB. It supports a maximum input power of +30 dBm. The device utilizes field-replaceable 2.92mm connectors, ensuring modular maintenance capabilities.

Feature Summary

• Provides positive slope signal equalization across the specified high-frequency band
• Features a fixed equalizing value for consistent performance without adjustment
• Utilizes field-replaceable connector modules for simplified maintenance

Applications

• RF and wireless system signal conditioning
• High-frequency test and measurement setups
• Microwave communication link compensation

Procurement Notes

Verify the specific connector type and module configuration against project requirements before ordering. Confirm that the operating frequency range aligns with the system's operational bandwidth. Ensure that the maximum input power rating of +30 dBm is not exceeded in the intended application environment to prevent component damage.

Selection Notes

Select this component when a fixed positive slope correction is required between 18 GHz and 40 GHz. Consider the 2 dB insertion loss impact on overall system gain. Evaluate the need for field-replaceable modules versus fixed assemblies based on maintenance accessibility and long-term reliability requirements in the deployment environment.

Part Context

This part belongs to Pasternack's RF and Wireless product line, specifically categorized under linear equalizers. It serves as a specialized passive component for managing frequency-dependent signal attenuation in high-frequency circuits. The design focuses on providing stable equalization characteristics within microwave frequency ranges.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
