PE70A9017

Overview

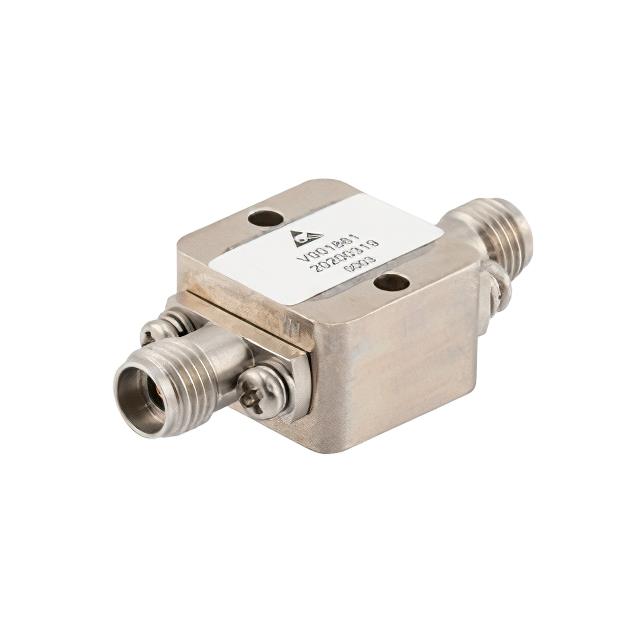

The PE70A9017 is a linear equalizer manufactured by Pasternack, designed for high-frequency applications within the 26.5 GHz to 40 GHz range. This component functions as a gain equalizer, providing attenuation levels between 3 dB and 5 dB to compensate for signal variations. It exhibits an insertion loss ranging from 3 dB to 5.5 dB. The device utilizes SMA connectors for interface connectivity and is categorized under general purpose RF types. It serves as a passive interconnect solution for maintaining signal integrity in millimeter-wave systems.

Feature Summary

• Provides linear gain equalization across the specified frequency band
• Utilizes SMA connector interfaces for standard integration
• Designed for general purpose RF signal conditioning

Applications

• Millimeter-wave communication systems requiring signal amplitude correction
• Test and measurement equipment needing precise gain balancing
• RF front-end modules for high-frequency data transmission

Procurement Notes

Verify the specific datasheet version with the manufacturer or authorized distributor to confirm current RoHS compliance status and detailed electrical tolerances. Ensure that the SMA connector mating requirements align with your system's existing infrastructure. Cross-reference the part number against official Pasternack catalogs to distinguish between updated revisions or alternative packaging options available for this equalizer model.

Selection Notes

Select this component when application requirements demand fixed attenuation characteristics within the 26.5 GHz to 40 GHz spectrum. The choice depends on the need for a passive linear equalizer rather than an active variable attenuator. Consider the physical size and mounting constraints associated with SMA-based components. Evaluate if the specified insertion loss and gain equalization range meet the system's noise figure and power budget limitations.

Part Context

This component belongs to the RF Variable Attenuators subcategory, specifically functioning as a gain equalizer within Pasternack's portfolio. It addresses the need for stable signal amplitude control in high-frequency environments. The product line focuses on connectorized solutions that integrate seamlessly into coaxial test setups and permanent installations requiring reliable performance at millimeter-wave frequencies.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model.
