PE70A9019

Overview

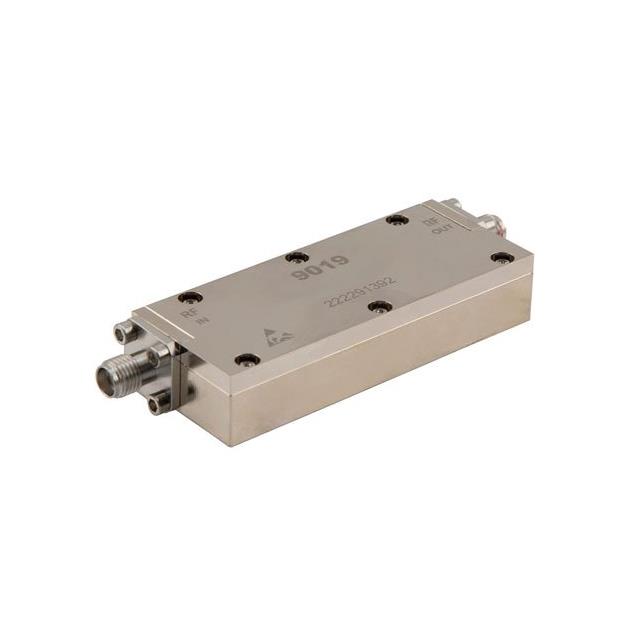

The Pasternack PE70A9019 is a negative slope equalizer designed for signal conditioning applications. It operates within a frequency range of 1 GHz to 4 GHz and provides a fixed equalizing value of 3 dB. The component exhibits a maximum insertion loss of 0.7 dB and supports a maximum power input of 250 mW. It utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides fixed negative slope signal equalization
• Operates across 1 GHz to 4 GHz frequency band
• Features low insertion loss characteristics

Applications

• RF signal conditioning circuits
• Wireless communication systems requiring frequency response correction
• Test and measurement equipment signal paths

Procurement Notes

Verify the specific connector type and package configuration against official datasheets before ordering. Confirm that the operating frequency range and power handling capabilities align with system requirements. Ensure compatibility with existing SMA interfaces in the design.

Selection Notes

Select this component when a fixed negative slope equalization profile is required between 1 GHz and 4 GHz. Consider the 3 dB equalizing value and 0.7 dB loss specifications relative to system budget constraints. Evaluate the 250 mW power rating against expected signal levels.

Part Context

This part belongs to Pasternack's RF and wireless components portfolio, specifically categorized under signal conditioning modules. It serves as a specialized passive device for managing frequency-dependent signal attenuation in high-frequency electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for equivalent models if direct replacement is necessary.
