PE70A9020

Overview

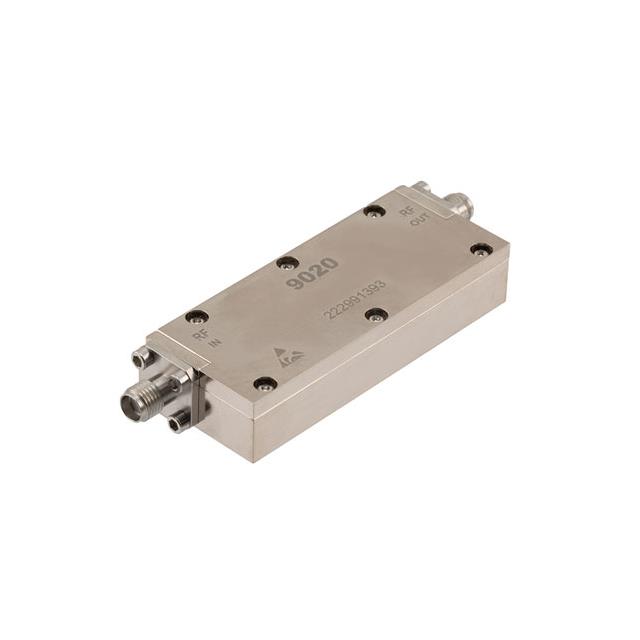

The Pasternack PE70A9020 is a negative slope linear equalizer designed for RF signal conditioning applications. It operates within a frequency range of 1 GHz to 4 GHz and provides a fixed equalizing value of 6 dB. The component features SMA connectors and exhibits a maximum insertion loss of 0.6 dB. It is rated for a maximum power handling capacity of 250 mW. This device is engineered to compensate for signal attenuation characteristics in high-frequency circuits.

Feature Summary

• Provides fixed negative slope equalization to correct frequency-dependent signal loss
• Operates across the 1 GHz to 4 GHz frequency spectrum
• Utilizes SMA connector interfaces for integration

Applications

• RF signal path compensation in communication systems
• Test and measurement equipment requiring frequency response correction
• High-frequency circuit design for signal integrity maintenance

Procurement Notes

Verify the specific SMA connector gender and cable assembly requirements against system interface specifications. Confirm that the 250 mW power rating aligns with operational signal levels to prevent component damage. Ensure the 1 GHz to 4 GHz frequency range covers the intended application bandwidth. Check for RoHS compliance documentation if required by project standards.

Selection Notes

Select this component when a fixed negative slope equalization profile is required between 1 GHz and 4 GHz. The 6 dB equalizing value addresses specific attenuation needs, while the low 0.6 dB insertion loss minimizes additional signal degradation. Consider the SMA interface compatibility and 250 mW power limit during system design to ensure proper integration and reliability.

Part Context

This part belongs to the Pasternack RF linear equalizer series, specifically designed for general-purpose signal conditioning. It addresses challenges related to frequency-dependent loss in RF transmission lines. The product is categorized under RF ICs and modules, serving as a passive component for maintaining signal fidelity in high-frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
