PE70A9024

Overview

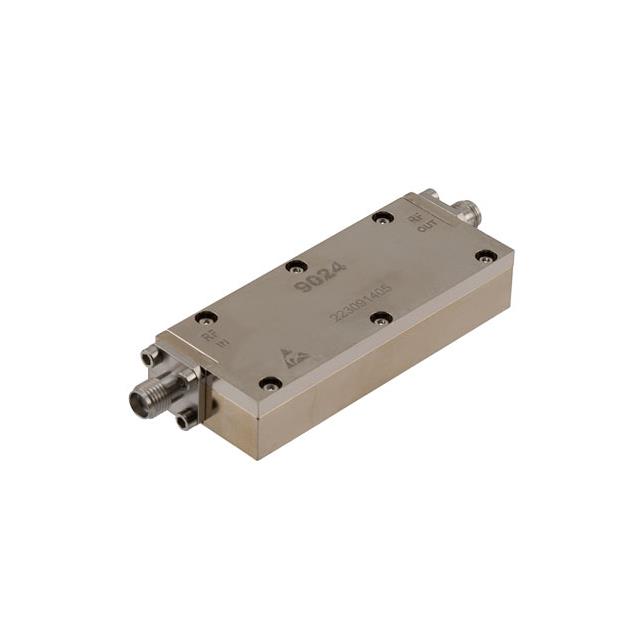

The Pasternack PE70A9024 is a linear equalizer designed for RF applications operating within the 2 GHz to 6 GHz frequency range. It utilizes SMA connectors for interface connectivity, ensuring compatibility with standard coaxial systems. This component functions as a general-purpose signal conditioning device, intended to compensate for amplitude variations across its specified bandwidth. The unit is constructed to support high-frequency signal integrity in test and measurement environments.

Feature Summary

• Linear equalization capability for signal amplitude correction
• Operates within the 2 GHz to 6 GHz frequency spectrum
• Equipped with SMA connector interfaces

Applications

• RF signal conditioning in test and measurement setups
• Compensation of amplitude variations in high-frequency circuits
• General-purpose equalization in communication systems

Procurement Notes

Verify the specific datasheet requirements for insertion loss and return loss parameters prior to integration. Confirm that the SMA connector gender and cable assembly specifications match the system interface. Ensure the operating environment remains within the stated 2 GHz to 6 GHz range to maintain performance accuracy. Cross-reference the manufacturer's latest documentation for any updates to mechanical or electrical tolerances.

Selection Notes

Select this component when precise linear equalization is required between 2 GHz and 6 GHz. The SMA interface offers broad compatibility with existing RF infrastructure. Consider the physical size and mounting constraints if integrating into dense assemblies. Validate that the general-purpose nature meets the specific linearity needs of the application without requiring custom tuning.

Part Context

This part belongs to the Pasternack RF ICs and Modules category, specifically focusing on signal processing components. It complements fixed attenuators and variable step attenuators by providing amplitude correction rather than simple signal reduction. The product line emphasizes high-frequency performance and reliability for professional engineering applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing SMA-based systems if considering alternative equalizers from other manufacturers.
