PE70A9029

Overview

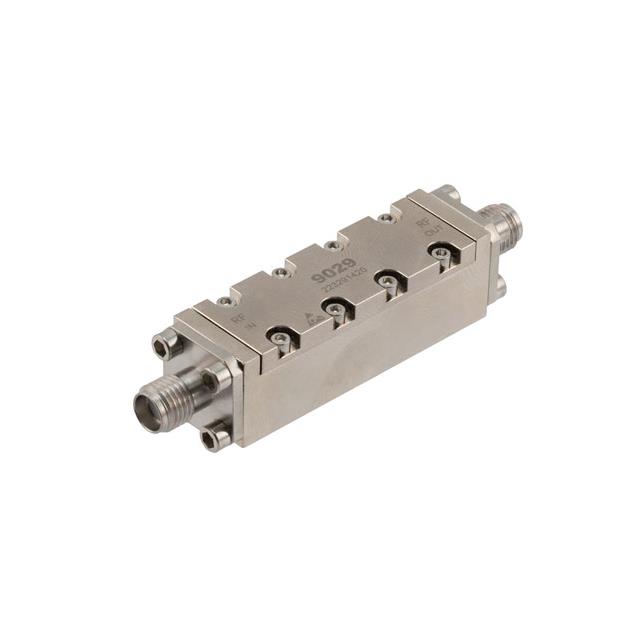

The Pasternack PE70A9029 is a negative slope passive RF gain equalizer designed for signal conditioning applications. It operates within a frequency range of 4 GHz to 12 GHz and provides a fixed equalizing value of 9 dB. The component exhibits an insertion loss of 0.3 dB and supports a maximum input power of 250 mW. It utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides fixed negative slope equalization to compensate for frequency-dependent signal attenuation in high-frequency circuits.

Applications

• Signal conditioning in microwave communication systems
• Compensation for cable or filter roll-off in test and measurement setups
• RF front-end linearization

Procurement Notes

Verify the specific SMA connector gender and mating requirements against system design specifications before integration. Confirm that the operating environment remains within the specified power and frequency limits to ensure reliable performance. Check current availability status with authorized distributors as supply levels may vary.

Selection Notes

Select this component when a fixed 9 dB negative slope correction is required between 4 GHz and 12 GHz. Ensure the system can accommodate the 0.3 dB insertion loss and that the input signal does not exceed the 250 mW maximum power rating. Verify compatibility with existing SMA interfaces.

Part Context

This part belongs to the negative slope passive RF gain equalizers series from Pasternack. It is categorized under signal conditioning products and filters, specifically designed for maintaining signal integrity across wideband microwave frequencies by counteracting natural high-frequency attenuation.

FAQ

What is the fixed equalizing value of the PE70A9029?

The PE70A9029 provides a fixed equalizing value of 9 dB.

Does the PE70A9029 support variable adjustment?

No, it is a fixed equalizer with a set 9 dB value and does not offer variable adjustment capabilities.
