PE70A9033

Overview

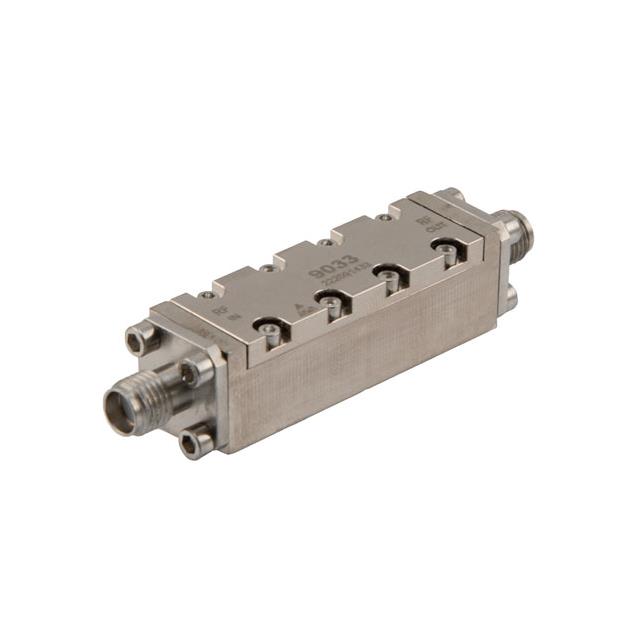

The PE70A9033 is a negative slope equalizer module designed for RF applications. It operates within a frequency range of 8 GHz to 12 GHz and provides a fixed attenuation response that decreases as frequency increases. The component utilizes SMA connectors for interface connectivity.

Feature Summary

• Negative slope equalization characteristics
• Fixed attenuation response decreasing with frequency

Applications

• RF signal conditioning
• Frequency response correction in microwave systems

Procurement Notes

Verify the specific datasheet version and connector orientation details before procurement. Confirm that the SMA interface matches your system requirements. Ensure the operating frequency range aligns with your application needs. Check for any specific handling instructions regarding the module's sensitivity.

Selection Notes

Select this component when a negative slope equalization profile is required between 8 GHz and 12 GHz. It is suitable for applications needing fixed attenuation that varies inversely with frequency. Consider the SMA connector type for integration compatibility.

Part Context

This module belongs to Pasternack's RF IC Linear Equalizer series. It is categorized under RF Miscellaneous ICs and Modules. The product is designed to provide precise signal shaping in high-frequency environments.

FAQ

What is the frequency range of the PE70A9033?

The PE70A9033 operates from 8 GHz to 12 GHz.

What type of attenuation response does it provide?

It exhibits a fixed attenuation response that decreases as frequency increases, known as a negative slope.
