PE70A9036

$1,564.68

Description：Negative Slope Equalizer, 12 GHz
Series：-
Mfr：Pasternack
Package：Retail Package

SKU:f66dd24dde85 Category: RF Misc ICs and Modules Brand: Pasternack

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Negative Slope Equalizer, 12 GHz
Series：-
Mfr：Pasternack
Package：Retail Package
Function：Linear Equalizer
Frequency：12GHz ~ 18GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：SMA In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

PE70A9036

Overview

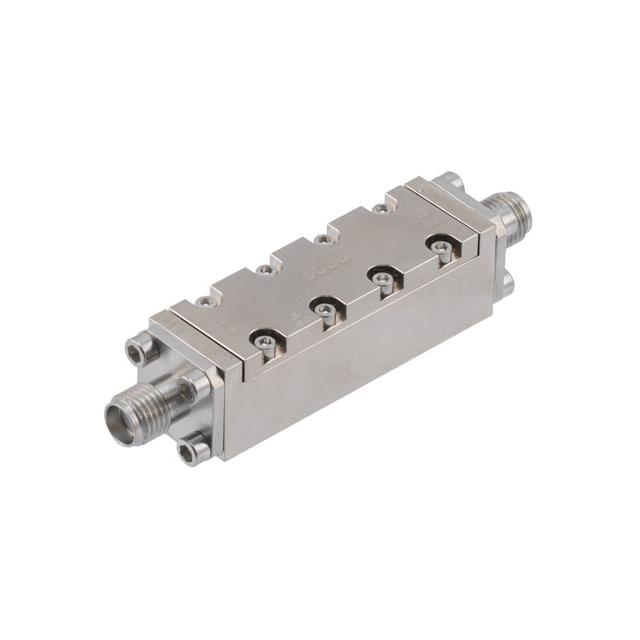

The PE70A9036 is a signal conditioning negative slope equalizer manufactured by Pasternack. It operates within the frequency range of 12 GHz to 18 GHz and provides a fixed equalizing value of 7 dB. The component exhibits a maximum insertion loss of 0.65 dB and has a maximum power rating of 150 mW. It utilizes SMA female connectors for interfacing.

Feature Summary

Provides negative slope signal equalization
Features fixed 7 dB equalizing value
Supports SMA female connector interfaces

Applications

Signal conditioning in RF systems
Compensation in microwave measurement setups
Integration into general purpose RF modules

Procurement Notes

Verify the specific datasheet version when sourcing this component, as manufacturer specifications may be updated. Confirm that the SMA interface matches your system requirements. Ensure the operating environment stays within the specified power and frequency limits to maintain performance integrity.

Selection Notes

Select this model when a fixed negative slope correction is required between 12 GHz and 18 GHz. Consider the 7 dB fixed value against variable alternatives if precise attenuation control is not needed. Verify that the 150 mW power handling meets the system's signal levels.

Part Context

This component belongs to the RF IC Linear Equalizer category from Pasternack. It is designed for general purpose applications requiring signal shape correction. The unit integrates passive equalization characteristics into a compact module format suitable for various RF test and measurement environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify compatibility with existing designs before considering alternative models from other manufacturers.
