Product Detailed Parameters
- Description：Negative Slope Equalizer, 18 GHz
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Function：Linear Equalizer
- Frequency：18GHz ~ 26.5GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

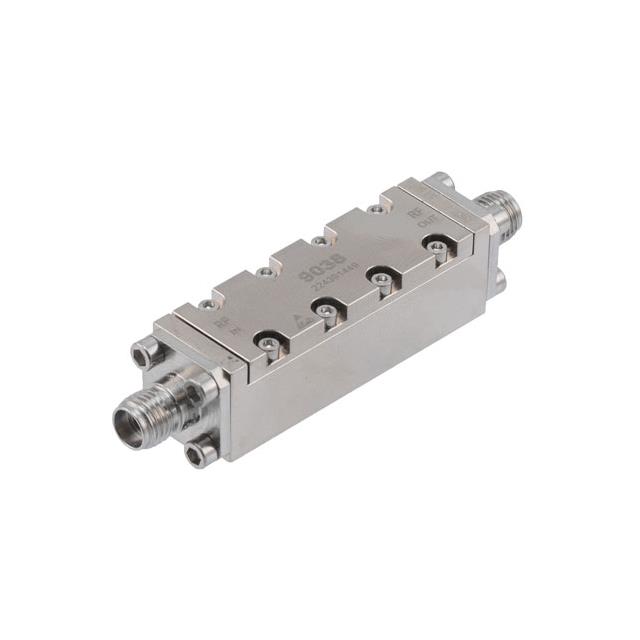

The PE70A9038 is a negative slope passive RF gain equalizer manufactured by Pasternack. It operates within the frequency range of 18 GHz to 26 GHz. The component provides a fixed equalizing value of 6 dB with a maximum insertion loss of 1.3 dB. It supports a maximum input power (Pin) of 250 mW. The device utilizes SMA connectors for interfacing and is packaged in bulk.
Feature Summary
- Provides fixed negative slope signal conditioning to compensate for frequency-dependent losses in RF transmission paths.
- Designed for high-frequency applications operating between 18 GHz and 26 GHz.
- Features SMA connectors for direct integration into standard RF test and measurement setups.
Applications
- RF signal chain compensation in microwave communication systems
- Test and measurement equipment requiring flat frequency response
- Satellite communication ground stations
Procurement Notes
Verify the specific SMA connector gender and cable assembly requirements against the official datasheet before procurement. Confirm that the 250 mW maximum input power rating aligns with your system's signal levels to prevent damage. Ensure the 18-26 GHz operational range matches your application spectrum needs.
Selection Notes
Select this component when a fixed 6 dB negative slope correction is required within the 18-26 GHz band. Consider the 1.3 dB insertion loss impact on overall system gain. Verify compatibility with existing SMA infrastructure. This passive device does not require external power supplies, simplifying integration into passive RF networks.
Part Context
This part belongs to Pasternack's series of negative slope passive RF gain equalizers. These components are designed to counteract the natural roll-off of signals at higher frequencies. The PE70A9038 specifically targets the Ka-band region, offering a standardized solution for maintaining signal integrity across wideband microwave links without active amplification.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult Pasternack technical support for equivalent models with adjusted frequency ranges or equalization values if this specific part is unavailable.
