PE7162-1

Overview

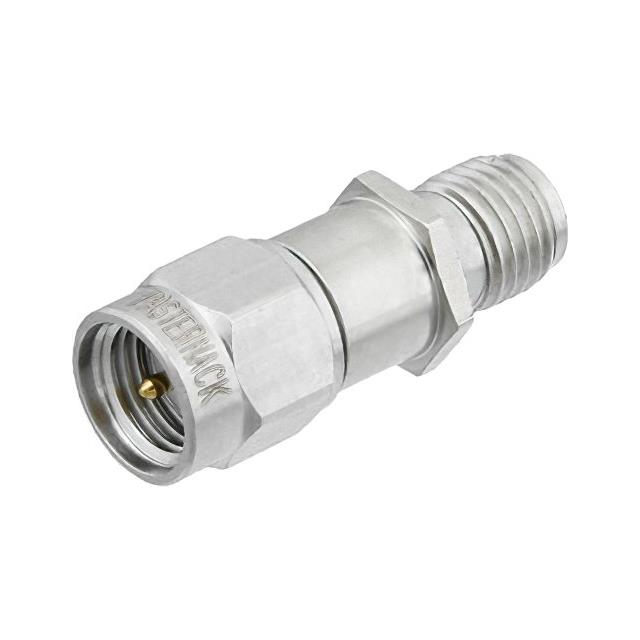

The Pasternack PE7162-1 is a 1 dB fixed attenuator designed for RF applications up to 6 GHz. It features an SMA male-to-SMA female interface configuration, enabling seamless integration into standard coaxial systems. The device utilizes a passivated stainless steel body for durability and signal integrity. Rated to handle up to 2 Watts of power, this component provides precise attenuation characteristics within its specified frequency range, serving as a reliable passive element for signal level adjustment in test and measurement setups.

Feature Summary

• Provides a fixed 1 dB attenuation value for consistent signal reduction
• Utilizes SMA male to SMA female connectors for universal compatibility
• Constructed with a passivated stainless steel body for robust performance

Applications

• Signal level adjustment in RF test and measurement equipment
• Impedance matching and reflection control in microwave circuits
• Protecting sensitive receiver inputs from high power signals

Procurement Notes

Verify the specific model number PE7162-1 against your system requirements before ordering. Confirm that the SMA connector type and 1 dB attenuation value align with your design specifications. Ensure the 2 Watt power rating and 6 GHz frequency limit are sufficient for your intended application environment. Check for any required certifications or compliance documentation relevant to your region.

Selection Notes

Select the PE7162-1 when a precise 1 dB reduction is required at frequencies up to 6 GHz. The SMA interface ensures compatibility with existing SMA-based infrastructure. Consider the 2 Watt power handling capability to avoid thermal issues. This component is suitable for applications requiring stable, passive attenuation without active components.

Part Context

This component belongs to the category of fixed attenuators manufactured by Pasternack Enterprises. It serves as a passive RF component used to reduce signal amplitude by a specific, constant amount. Fixed attenuators like the PE7162-1 are essential for maintaining signal integrity and protecting downstream components in radio frequency and microwave systems.

Replacement Considerations

No public substitute part numbers are documented for this specific model.
