PE7162-10

Overview

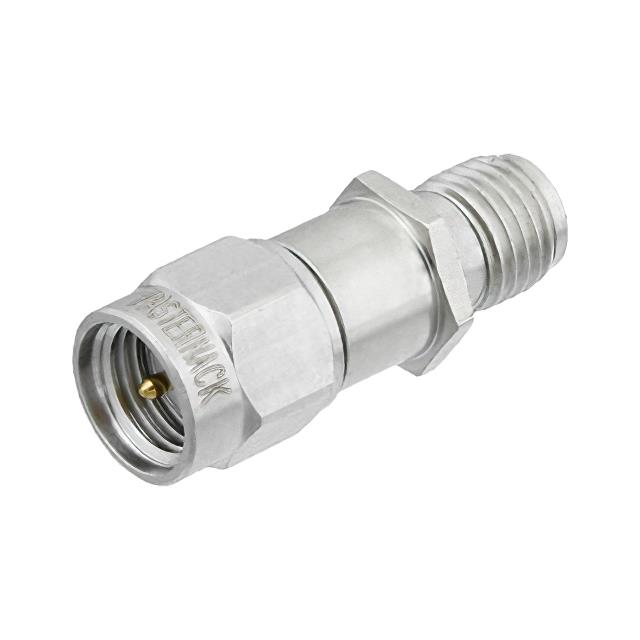

The Pasternack PE7162-10 is a fixed RF attenuator designed for signal level reduction in microwave systems. It provides an attenuation value of 10 dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of DC to 6 GHz and is rated for a maximum power handling capacity of 2 Watts. Construction features a passivated stainless steel body with SMA male to SMA female connectors, ensuring reliable performance in high-frequency applications.

Feature Summary

• Fixed 10 dB attenuation value for precise signal control
• SMA male to SMA female connector interface for standard integration
• Passivated stainless steel body for durability and corrosion resistance
• Rated for 2 Watts power handling up to 6 GHz frequency range

Applications

• RF test and measurement equipment signal conditioning
• Microwave communication system power level adjustment
• Laboratory bench setups requiring fixed attenuation
• Component characterization and testing environments

Procurement Notes

Verify the specific model suffix matches the required attenuation value and connector gender configuration. Confirm that the operating frequency does not exceed the 6 GHz limit and that the power rating aligns with system requirements. Ensure compatibility with existing SMA interfaces in the design.

Selection Notes

Select this component when a fixed 10 dB loss is required between DC and 6 GHz. Consider the 2 Watt power rating for thermal management. The SMA interface dictates mating connector types. Verify environmental specifications if used in harsh conditions beyond standard laboratory settings.

Part Context

This part belongs to Pasternack's series of fixed coaxial attenuators. It utilizes a resistive PI pad design internally. The product line offers various attenuation values and connector combinations. The PE7162 series specifically targets general-purpose microwave applications requiring stable performance.

Replacement Considerations

Direct substitutes include other 10 dB SMA fixed attenuators from different manufacturers. Ensure equivalent electrical parameters such as VSWR and power rating are matched. Connector gender and interface type must remain compatible with the existing assembly.
