PE7162-12

Overview

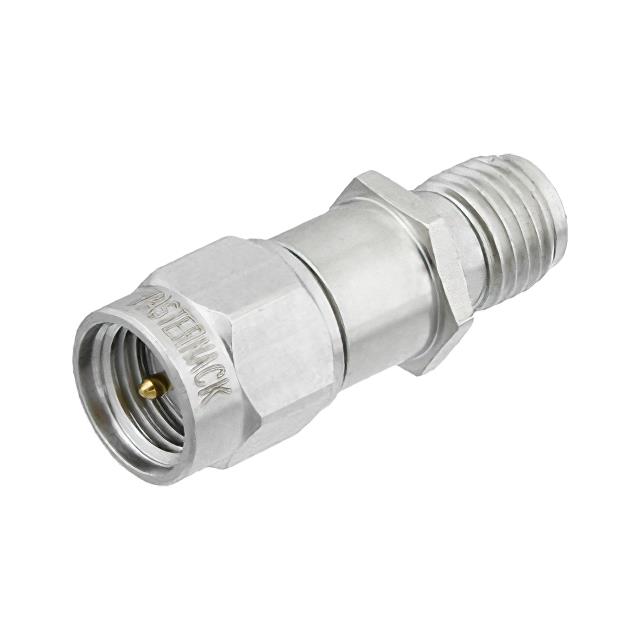

The Pasternack PE7162-12 is a fixed RF attenuator providing 12 dB attenuation. It operates from DC to 6 GHz with a power rating of 2 Watts. The device features SMA male to SMA female connectors and a passivated stainless steel body.

Feature Summary

• Fixed 12 dB attenuation value
• Operates up to 6 GHz frequency range
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level reduction
• Test and measurement setups
• Microwave circuit protection

Procurement Notes

Verify the specific part number PE7162-12 against official Pasternack documentation to confirm the 12 dB attenuation value, 2 Watt power rating, and 6 GHz frequency limit. Ensure connector compatibility matches your system requirements before procurement.

Selection Notes

Select this component when a precise 12 dB reduction is required within a 50 Ohm system operating below 6 GHz. Consider the 2 Watt power handling capability for your application's signal strength.

Part Context

This model belongs to the PE7162 series of fixed coaxial attenuators from Pasternack. The series offers various attenuation values using similar SMA connector interfaces and stainless steel housing designs for consistent performance across different signal levels.

Replacement Considerations

Check for exact electrical match: 12 dB attenuation, DC-6 GHz range, 2W power, SMA male-female interface. Verify manufacturer specifications for any pinout or mechanical differences if substituting.
