PE7162-3

Overview

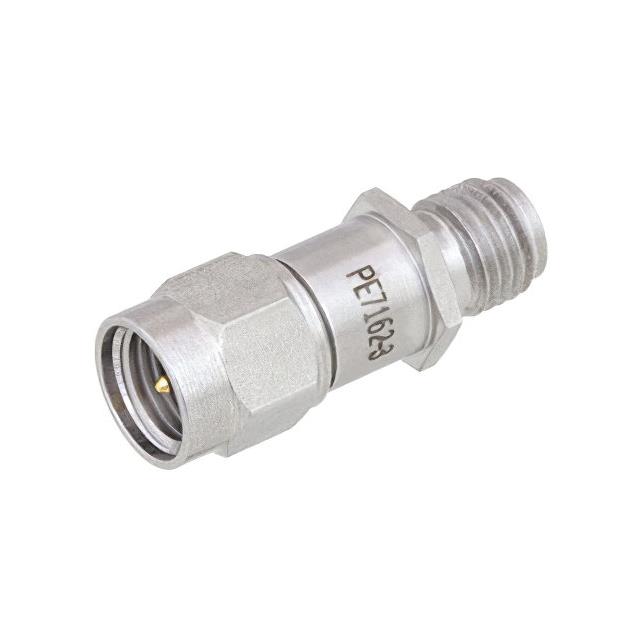

The Pasternack PE7162-3 is a fixed attenuator designed for RF and wireless applications. It features an SMA male connector configuration, providing a precise attenuation value of 3 dB. The component operates within the frequency range of DC to 4 GHz, ensuring signal integrity across standard microwave bands. Constructed with robust materials, it supports reliable performance in various test and measurement setups. The unit is housed in a compact form factor suitable for panel mounting or integration into larger RF systems.

Feature Summary

• Provides a fixed 3 dB attenuation level for signal reduction
• Utilizes SMA male connectors for secure interfacing
• Operates effectively from DC up to 4 GHz frequency range

Applications

• RF signal testing and measurement equipment
• Wireless communication system calibration
• Laboratory instrumentation signal conditioning

Procurement Notes

Verify the specific model number PE7162-3 against official Pasternack documentation to confirm the 3 dB attenuation value and SMA male interface. Ensure compatibility with your system's frequency requirements up to 4 GHz. Check for any specific environmental ratings or mounting hardware requirements listed in the datasheet before finalizing procurement.

Selection Notes

Select this component when a precise 3 dB signal reduction is required in the DC to 4 GHz band. The SMA male interface dictates compatibility with existing SMA-based infrastructure. Consider the physical size and mounting style if space constraints are critical in your assembly design.

Part Context

This part belongs to Pasternack's line of RF and wireless components, specifically focusing on signal attenuation solutions. It complements their broader portfolio of adapters, cables, and connectors by providing essential signal level control capabilities for precision engineering tasks.
