PE7162-30

Overview

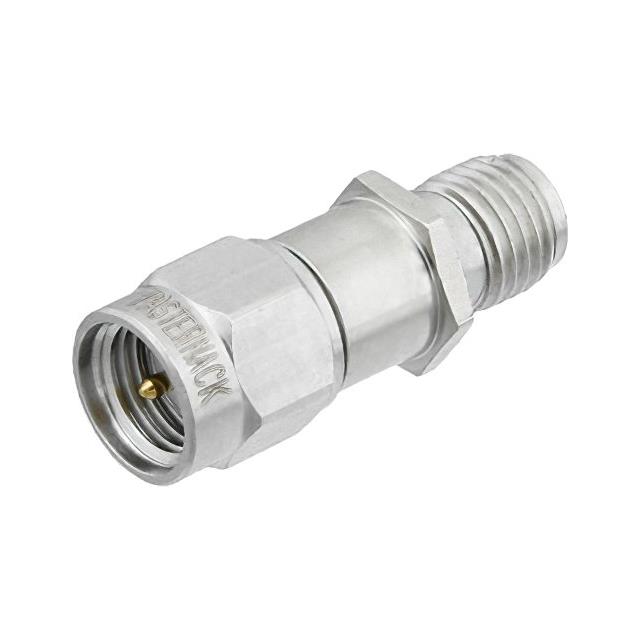

The PE7162-30 is a fixed attenuator manufactured by Pasternack, designed for RF signal attenuation in telecommunications and testing applications. It features an SMA male to SMA female connector configuration with a passivated stainless steel body. The component provides a maximum attenuation of 30 dB and operates within a frequency range of 0 Hz to 6 GHz. It has a power rating of 2 Watts at the stated attenuation value and maintains an impedance of 50 Ohms. The unit supports a VSWR of 1.25:1 and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Fixed resistive PI attenuator pad design for consistent signal reduction
• Passivated stainless steel body construction for durability
• SMA male to SMA female coaxial interface

Applications

• Telecommunications systems
• RF testing and measurement setups
• Signal strength reduction in microwave circuits

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer specifications may be updated. Confirm that the SMA connector gender and passivated stainless steel material meet your environmental requirements. Ensure the 2-watt power rating and 6-GHz frequency limit are sufficient for your intended application before finalizing procurement.

Selection Notes

Select this model when a precise 30 dB attenuation is required up to 6 GHz. The passivated stainless steel body offers robustness compared to brass alternatives. Consider the 2-watt power handling capability relative to your system's peak power levels. The SMA interface ensures compatibility with standard test equipment and RF modules requiring this connector type.

Part Context

This component belongs to Pasternack's series of fixed attenuators featuring SMA connectors and passivated stainless steel bodies. Similar models in this family include the PE7162-2, PE7162-4, PE7162-9, and PE7162-20, which offer varying attenuation values but share the same physical construction and electrical interface characteristics.

Replacement Considerations

Direct substitutes include other Pasternack models with identical SMA interfaces and similar attenuation values, such as the PE7162-20 or PE7162-40, depending on the required dB loss. Verify that any replacement matches the 50-ohm impedance and 6-GHz frequency range.
