PE7162-4

Overview

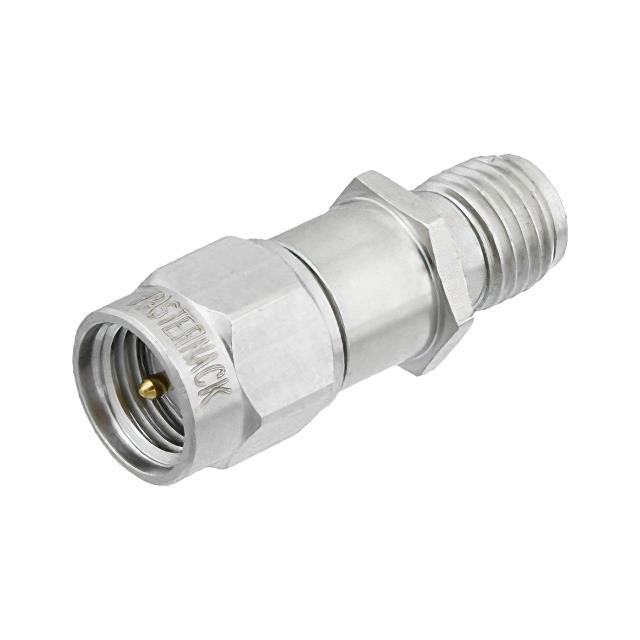

The PE7162-4 is a fixed attenuator from Pasternack, providing a precise attenuation value of 4 dB. It features an SMA male to SMA female interface configuration, suitable for standard RF applications. The device operates effectively up to a maximum frequency of 6 GHz. It is rated to handle a power level of 2 Watts. The construction utilizes a passivated stainless steel body, ensuring durability and consistent performance in various environments.

Feature Summary

• Provides fixed 4 dB signal attenuation
• SMA male to SMA female connector interface
• Operates up to 6 GHz frequency range
• Passivated stainless steel body construction

Applications

• RF signal level adjustment
• Test and measurement setups
• Communication system integration

Procurement Notes

Verify the specific part number PE7162-4 against official Pasternack documentation to confirm the 4 dB attenuation value and 6 GHz frequency limit. Ensure the SMA male-to-female configuration matches the system requirements. Check for any updated datasheets regarding the 2 Watt power rating and passivated stainless steel material specifications before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 4 dB reduction in RF signal strength is required within a 6 GHz bandwidth. The SMA interface compatibility should be verified against existing connectors. Consider the 2 Watt power handling capability relative to the application's signal levels. The passivated stainless steel body offers robustness for general RF use cases.

Part Context

This component belongs to the Pasternack fixed attenuator series, designed for reliable signal management in RF circuits. It serves as a passive device to control power levels without introducing significant distortion. The SMA interface ensures broad compatibility with standard RF equipment and test instruments commonly used in engineering and industrial settings.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
