PE7162-6

Overview

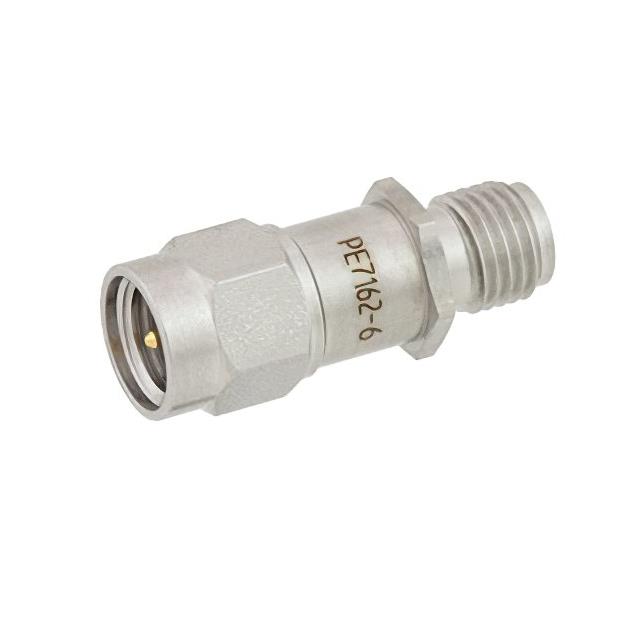

The Pasternack PE7162-6 is a fixed coaxial attenuator designed for RF applications up to 6 GHz. It provides a precise attenuation value of 6 dB with a 50 Ohm impedance characteristic. The component utilizes SMA connectors for secure interfacing within transmission lines. Constructed for reliable performance, it supports standard operating temperatures and ensures signal level reduction without distortion in high-frequency circuits.

Feature Summary

• Provides fixed 6 dB attenuation for signal management
• Operates reliably up to 6 GHz frequency range
• Features 50 Ohm impedance matching for system integration
• Utilizes SMA connector interface for secure connection

Applications

• RF signal level adjustment in test and measurement equipment
• Attenuation in wireless communication systems
• Signal conditioning in radar and navigation circuits

Procurement Notes

Verify the specific model designation against official manufacturer documentation to ensure compatibility with required frequency ranges and connector types. Confirm impedance specifications match the target circuit design. Check for any updated compliance certifications or environmental restrictions relevant to the procurement region before finalizing orders.

Selection Notes

Select this component when a fixed 6 dB attenuation is required at frequencies up to 6 GHz. Ensure the SMA connector type aligns with existing system interfaces. Consider thermal handling capabilities if operating near maximum temperature limits. Verify that the 50 Ohm impedance matches the surrounding network to minimize reflections.

Part Context

This part belongs to Pasternack's line of coaxial attenuators, which are passive components used to reduce signal power. These devices are essential for protecting sensitive receivers and ensuring accurate signal levels in RF chains. The PE7162-6 specifically addresses needs for moderate attenuation in broadband applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
