PE7162-9

Overview

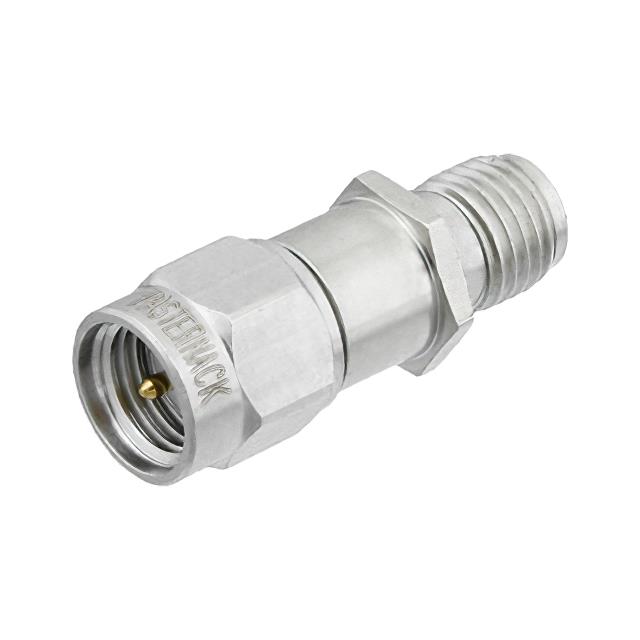

The PE7162-9 is a fixed attenuator manufactured by Pasternack, designed for RF applications up to 6 GHz. It features an SMA male to SMA female connector configuration with a passivated stainless steel body. The component is rated to handle power levels of 2 Watts within its operational frequency range.

Feature Summary

• Fixed attenuation value of 9 dB
• SMA male to SMA female interface
• Passivated stainless steel construction

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal attenuation in communication systems

Procurement Notes

Verify the specific model number PE7162-9 against official Pasternack documentation to confirm the 9 dB attenuation value and 2 Watt power rating. Ensure the SMA connector gender and passivated stainless steel material match project requirements before procurement.

Selection Notes

Select this component when a precise 9 dB attenuation is required at frequencies up to 6 GHz. Consider the 2 Watt power handling capability and the durability of the passivated stainless steel housing for environmental resistance.

Part Context

This part belongs to Pasternack's line of connectorized attenuators. It provides a reliable method for reducing signal strength in RF circuits using standard SMA connectors, suitable for various electronic testing and measurement scenarios.

Replacement Considerations

No public substitute part numbers are confirmed in the provided data. Verify compatibility with existing SMA interfaces if considering alternative brands.

FAQ

What is the maximum operating frequency?

The maximum operating frequency is 6 GHz.

What is the power rating?

The component is rated to handle 2 Watts.
