PE7201-10

Overview

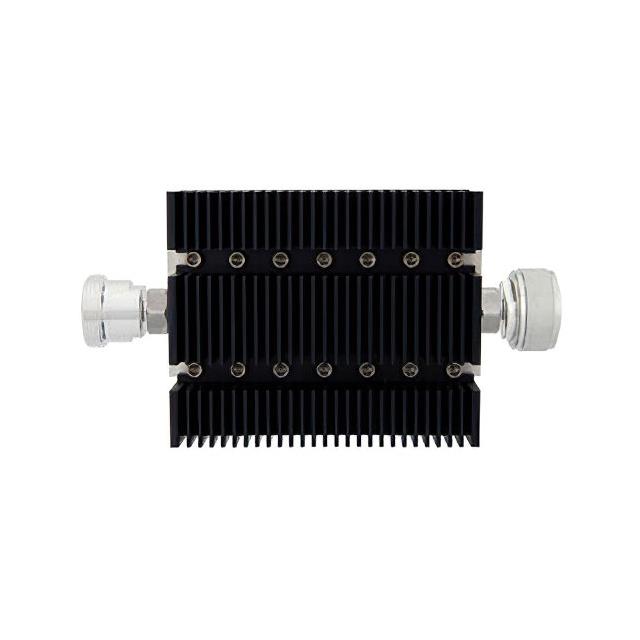

The PE7201-10 is a fixed 10 dB attenuator manufactured by Pasternack. It features 7/16 DIN female connectors on both ends and operates within a frequency range of 0 Hz to 6 GHz. The component maintains a 50 Ohm impedance and is rated for up to 100 Watts of power handling. It utilizes an in-line, resistive PI attenuator pad design housed in a hexagonal module package.

Feature Summary

• Fixed 10 dB attenuation value
• Resistive PI attenuator pad design
• 50 Ohm coaxial impedance
• Hexagonal in-line module housing

Applications

• RF signal level reduction
• Impedance matching in test setups
• Signal attenuation for high-power applications

Procurement Notes

Verify the connector type is 7/16 DIN female on both ports. Confirm the frequency range covers 0 Hz to 6 GHz. Ensure the power rating meets requirements of up to 100 Watts. Check that the impedance is 50 Ohms. Validate the packaging is a hexagonal in-line module.

Selection Notes

Select this model when a fixed 10 dB attenuation is required in RF systems operating up to 6 GHz. It is suitable for applications needing high power handling up to 100 Watts. The 7/16 DIN interface is ideal for robust connections. Consider the hexagonal form factor for secure mounting.

Part Context

This component belongs to Pasternack's line of RF attenuators. It is designed for reliable performance in radio frequency circuits. The product provides precise attenuation without significant signal reflection. It supports various industrial and communication applications requiring stable signal control.

Replacement Considerations

No public confirmed substitute part numbers are available.
