PE7201-20

Overview

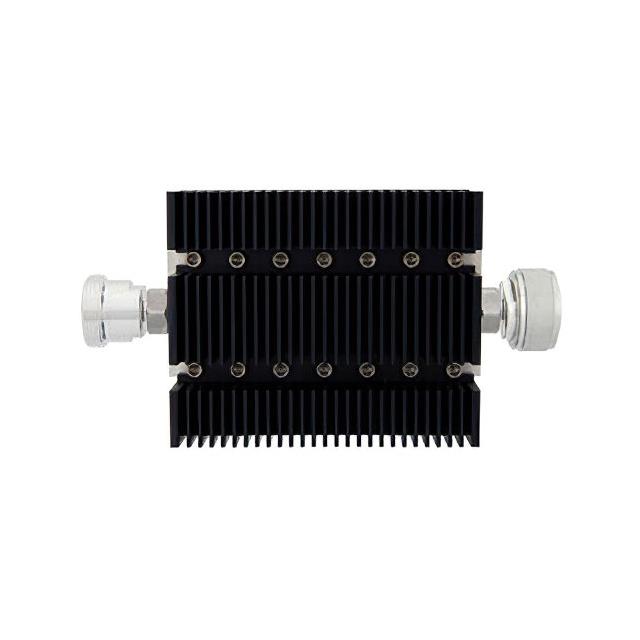

The PE7201-20 is a fixed attenuator manufactured by Pasternack. It provides a nominal attenuation of 20 dB. The device operates within a frequency range of 0 Hz to 6 GHz. It features a 7/16 DIN Female connector on one side and a 7/16 DIN Male connector on the other. The unit is rated for a maximum power handling capacity of 100 Watts. The physical construction utilizes a hexagonal in-line module design.

Feature Summary

• Provides precise 20 dB signal attenuation
• Supports operation up to 6 GHz frequency
• Handles continuous power up to 100 Watts

Applications

• RF signal level reduction
• Impedance matching networks
• Test and measurement equipment

Procurement Notes

Verify the specific connector gender configuration, as this model connects a female port to a male port. Confirm that the 100 Watt power rating aligns with system requirements. Ensure the 7/16 DIN interface matches existing infrastructure. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a 20 dB loss is required between 0 Hz and 6 GHz. The 7/16 DIN interface suits high-power applications. Consider the 100 Watt power limit for thermal management. Verify space constraints for the hexagonal in-line form factor.

Part Context

This part belongs to Pasternack's line of RF attenuators. It serves as a passive component for controlling signal strength. The 7/16 DIN standard ensures compatibility with industrial RF systems. It complements other fixed attenuator models in the series.

Replacement Considerations

Compatible substitutes include PE7201-30, PE7201-40, PE7201-50, and PE7201-60 from the same manufacturer. These alternatives offer different attenuation values while maintaining similar connector types and power ratings.
