PE7201-30

Overview

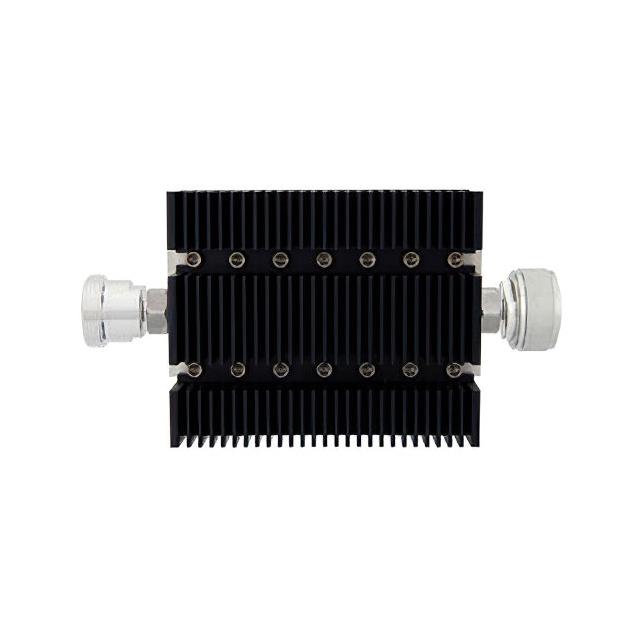

The Pasternack PE7201-30 is a fixed attenuator designed for high-power RF applications. It provides a nominal attenuation of 30 dB with a frequency range extending up to 6 GHz. The component features 7/16 DIN connectors, configured as female-to-male, and is rated for 100 watts of power handling capacity. Constructed with a brass body finished in nickel plating, it ensures durability and consistent performance across its operational bandwidth.

Feature Summary

• High power handling capability rated at 100 watts
• Wideband operation supporting frequencies up to 6 GHz
• Robust mechanical construction using nickel-plated brass

Applications

• RF test and measurement setups requiring signal reduction
• High-power transmitter output stages
• Antenna feed line systems

Procurement Notes

Verify the specific connector gender configuration (female-to-male) against system requirements before procurement. Confirm that the 100-watt power rating aligns with peak signal levels in the intended application. Ensure compatibility with 7/16 DIN mating interfaces to maintain proper impedance matching and physical connection integrity.

Selection Notes

Select this model when high power dissipation is required alongside significant attenuation values. The 7/16 DIN interface offers superior power handling compared to smaller connectors like N-type. Consider the 30 dB attenuation level relative to source and load specifications to ensure optimal signal conditioning without excessive loss or mismatch.

Part Context

This component belongs to Pasternack's fixed attenuator series, specifically utilizing the 7/16 DIN connector standard. It is engineered for environments demanding robustness and high power tolerance. The design focuses on maintaining stable electrical characteristics over a broad microwave frequency range while providing reliable mechanical connections.

Replacement Considerations

Direct substitutes must match the 30 dB attenuation value, 6 GHz maximum frequency, and 100-watt power rating. Connector types must be 7/16 DIN female-to-male. Verify that alternative models offer equivalent VSWR and insertion loss specifications to ensure circuit performance parity.
