PE7201-40

Overview

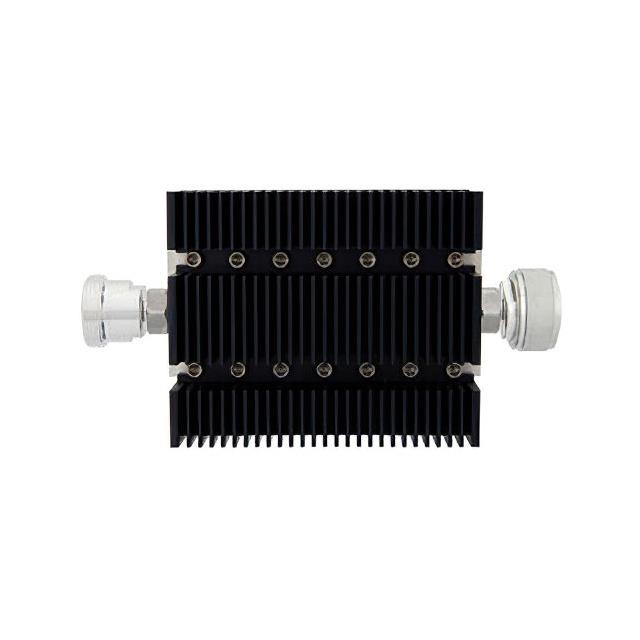

The Pasternack PE7201-40 is a fixed 40 dB attenuator featuring 7/16 DIN Female to 7/16 DIN Male connectors. It utilizes an in-line, resistive PI attenuator pad design within a coaxial 50 Ohm configuration. The component is rated for operation up to 6 GHz and supports a power handling capacity of 100 Watts.

Feature Summary

• Fixed 40 dB attenuation value
• Resistive PI attenuator pad design
• Coaxial 50 Ohm impedance
• Rated for 100 Watts power handling

Applications

• RF signal level reduction
• Impedance matching networks
• Signal conditioning in test equipment

Procurement Notes

Verify the connector gender configuration (Female to Male) against system requirements. Confirm that the 100 Watt power rating and 6 GHz frequency limit align with operational parameters. Ensure the 7/16 DIN interface matches existing infrastructure.

Selection Notes

Select this model when a precise 40 dB loss is required at frequencies up to 6 GHz. The 7/16 DIN interface suits high-power applications. Consider the 100 Watt rating for robust signal management needs.

Part Context

This component belongs to the Pasternack attenuators category. It provides a specific fixed attenuation solution using standard RF interfaces. The design focuses on reliable signal reduction in coaxial systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
