PE7201-6

Overview

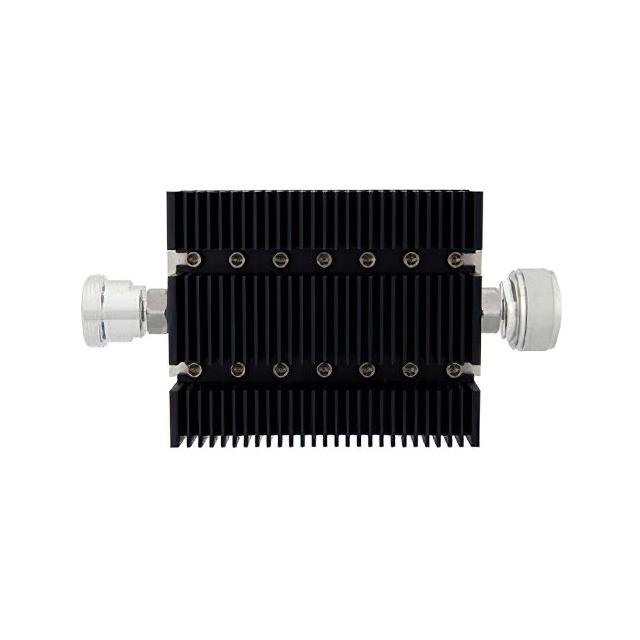

The Pasternack PE7201-6 is a fixed 6 dB attenuator designed for radio frequency applications up to 6 GHz. It features a directional configuration with 7/16 DIN female and male connectors, ensuring reliable signal management in high-power environments. Rated for 100 Watts of power handling, this component utilizes a resistive PI attenuator pad design within a coaxial 50 Ohm system. The unit operates effectively across a broad frequency range starting from DC, providing consistent attenuation performance suitable for precision microwave testing and communication infrastructure.

Feature Summary

• Directional signal attenuation capability
• High power handling capacity
• Resistive PI pad internal design

Applications

• RF test and measurement equipment
• Microwave communication systems
• Signal level adjustment in transmission lines

Procurement Notes

Verify the specific connector gender combination matches the application requirement, as the model indicates a female-to-male configuration. Confirm that the operating frequency does not exceed the 6 GHz upper limit and that the average power remains within the 100 Watt rating to ensure component longevity and performance stability.

Selection Notes

Select this component when a precise 6 dB reduction is required in a 50 Ohm system. Ensure the interface type aligns with existing cabling infrastructure. Consider the directional nature if isolation or specific signal flow directionality is necessary for the circuit design.

Part Context

This part belongs to Pasternack's line of fixed RF attenuators, which are essential passive components for managing signal strength. The PE7201 series specifically addresses high-power applications requiring robust connector interfaces like 7/16 DIN, distinguishing it from lower-power SMA or N-type variants.

Replacement Considerations

Check for exact electrical equivalence regarding the 6 dB value and 6 GHz bandwidth. Verify mechanical compatibility of the 7/16 DIN connectors. Substitute parts must maintain the 100 Watt power rating and 50 Ohm impedance to prevent signal reflection or damage.
