PE7201-60

Overview

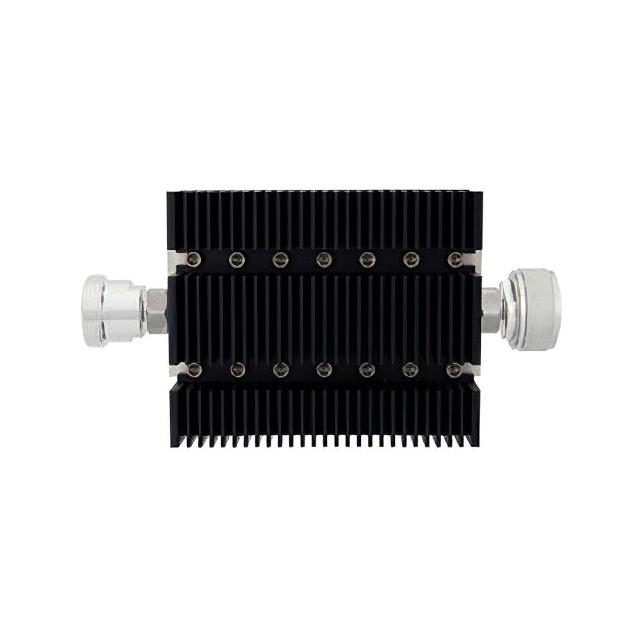

The Pasternack PE7201-60 is a fixed RF attenuator designed for high-power microwave applications. It provides a precise attenuation value of 60 dB across a frequency range from 0 Hz to 6 GHz. The component utilizes 7/16 DIN connectors, featuring a female-to-male configuration. It is rated for a maximum power handling capacity of 100 Watts at the specified attenuation level. This device serves as a critical passive component for signal level control in RF test and measurement systems.

Feature Summary

• Provides fixed 60 dB attenuation for signal reduction
• Operates effectively within the 0 Hz to 6 GHz frequency spectrum
• Supports high power handling up to 100 Watts
• Features robust 7/16 DIN connector interface

Applications

• RF test and measurement setups
• Microwave signal generation systems
• Communication equipment testing
• Laboratory calibration environments

Procurement Notes

Verify the specific connector gender configuration (Female to Male) against system requirements before ordering. Confirm that the 100 Watt power rating aligns with the operational limits of the target circuit. Ensure compatibility with 7/16 DIN mating interfaces. Check current availability status as this item may not be routinely stocked by all distributors.

Selection Notes

Select this model when a fixed 60 dB loss is required within the 6 GHz bandwidth. Consider the 7/16 DIN interface for high-power compatibility rather than smaller connector types. Evaluate the 100 Watt power limit against peak signal levels. Compare against variable attenuators if adjustable loss is needed instead of a fixed value.

Part Context

This component belongs to Pasternack's line of microwave attenuators. It complements other fixed attenuator models like the PE7201-20, which offers different attenuation values. These components are part of a broader portfolio including amplifiers, cables, and adapters, supporting complete RF system integration needs.

Replacement Considerations

Check for equivalent fixed attenuators from other manufacturers offering 60 dB loss and 7/16 DIN interfaces. Verify that substitute parts meet or exceed the 6 GHz frequency range and 100 Watt power handling specifications to ensure system performance consistency.
