PE7202-20

Overview

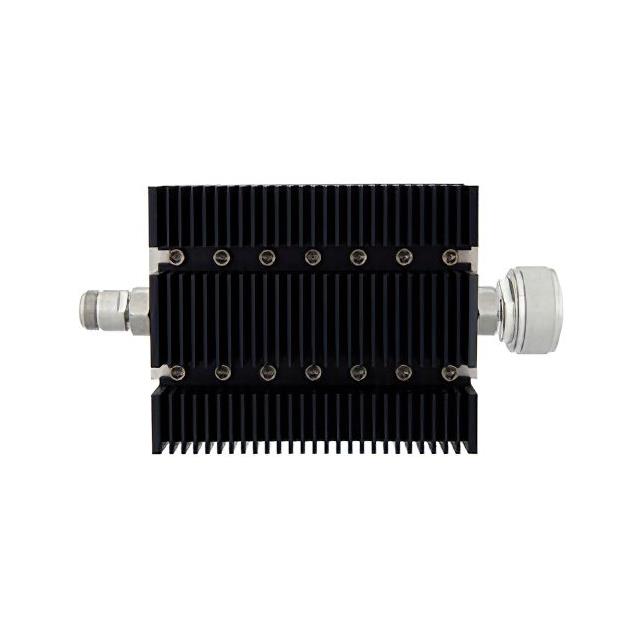

The PE7202-20 is a fixed 20 dB attenuator manufactured by Pasternack. It features an N-type female connector on one end and a 7/16 DIN male connector on the other, designed for directional applications. The component operates within a frequency range of 0 Hz to 6 GHz and maintains a 50 Ohm impedance. It utilizes a resistive PI attenuator pad design housed in black anodized aluminum. The device is rated for a maximum power handling capacity of 100 Watts at the stated attenuation value.

Feature Summary

• Fixed 20 dB attenuation using a resistive PI attenuator pad design
• Directional configuration with N-type female and 7/16 DIN male connectors
• Black anodized aluminum housing for durability

Applications

• RF signal level reduction in microwave systems
• Test and measurement equipment calibration
• Signal conditioning in wireless communication infrastructure

Procurement Notes

Verify that the required connector interface matches the N-type female to 7/16 DIN male specification. Confirm the application environment supports the 100 Watt power rating and 6 GHz frequency limit. Ensure the directional orientation aligns with system signal flow requirements before integration.

Selection Notes

Select this model when a precise 20 dB reduction is needed between N-type and 7/16 DIN interfaces. Consider the 100 Watt power handling capability for high-power RF paths. The directional design is suitable for applications requiring specific signal directionality within the 0 Hz to 6 GHz band.

Part Context

This component belongs to Pasternack's line of fixed coaxial attenuators. It provides stable attenuation characteristics across its specified frequency range. The use of standard connector types facilitates integration into existing RF test setups and communication hardware without requiring adapter solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
