PE7202-3

Overview

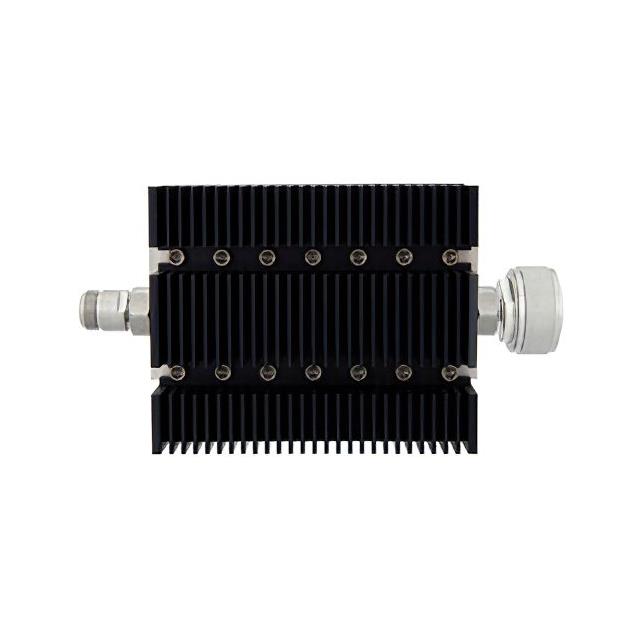

The Pasternack PE7202-3 is a 3 dB fixed RF attenuator designed for high-power applications up to 100 Watts. It operates within a frequency range of DC to 6 GHz and maintains a 50 Ohm impedance. The component features an N Female connector on one side and a 7/16 DIN Male connector on the other, facilitating directional signal attenuation in microwave systems.

Feature Summary

• Directional attenuation capability for precise signal control
• High power handling rated up to 100 Watts
• Broadband operation from DC to 6 GHz
• Mixed connector interface combining N Female and 7/16 DIN Male

Applications

• RF test and measurement setups requiring signal reduction
• Microwave communication systems needing power level adjustment
• Antenna feed line protection and impedance matching networks

Procurement Notes

Verify the specific datasheet version for exact VSWR and insertion loss tolerances before integration. Confirm that the mixed connector configuration (N Female to 7/16 DIN Male) aligns with existing system interfaces. Ensure thermal management strategies support the 100 Watt power rating during continuous operation to maintain performance stability.

Selection Notes

Select this model when a directional attenuator is required between N-type and 7/16 DIN interfaces. It is suitable for applications demanding high power handling at frequencies up to 6 GHz. Consider the physical size and heatsink requirements associated with the 100 Watt rating compared to lower-power alternatives.

Part Context

This component belongs to Pasternack's series of fixed RF attenuators. It serves as a passive interconnect device used to reduce signal amplitude without distortion. The specific model bridges different connector standards while providing standardized 3 dB attenuation for system calibration and protection.

Replacement Considerations

PE7202-60 offers higher attenuation values within the same connector and power specifications.
