PE7202-40

Overview

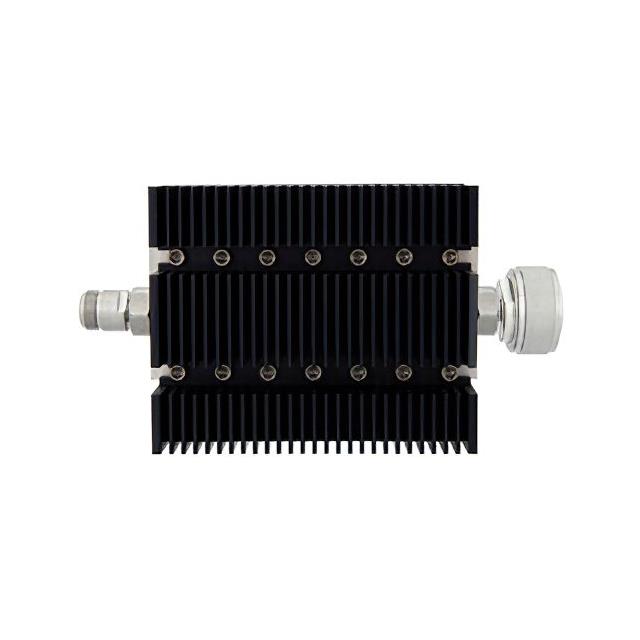

The Pasternack PE7202-40 is a fixed RF attenuator designed for high-power applications up to 6 GHz. It provides a precise attenuation value of 40 dB with a characteristic impedance of 50 Ohms. The device features an N female connector on one port and a 7/16 DIN male connector on the other, ensuring compatibility with standard microwave test setups. Rated for 100 Watts at the stated attenuation level, it utilizes a black anodized aluminum heatsink body to manage thermal dissipation effectively during continuous operation.

Feature Summary

• Directional signal attenuation capability
• High power handling rated to 100 Watts
• Robust black anodized aluminum heatsink construction

Applications

• RF signal testing and measurement
• Microwave system component evaluation
• Signal integrity verification in high-power circuits

Procurement Notes

Verify that the specific order matches the PE7202-40 designation to ensure the correct 40 dB attenuation value and connector combination. Confirm operational requirements align with the 100 Watt power rating and 6 GHz frequency limit before deployment. Request the official datasheet from Pasternack Enterprises to validate technical specifications against project constraints.

Selection Notes

Select this model when a fixed 40 dB reduction is required between N-type and 7/16 DIN interfaces. Ensure the application environment supports the specified 100 Watt power handling capacity. Consider the directional nature of the component if isolation characteristics are critical for the specific circuit topology.

Part Context

This component belongs to the PE7202 series of fixed attenuators manufactured by Pasternack. The series offers various attenuation levels, including 50 dB and 60 dB options, sharing similar connector configurations and power ratings. These parts are engineered for consistent performance in radio frequency and microwave environments requiring stable signal reduction.

Replacement Considerations

Direct substitutes within the same series include the PE7202-50 and PE7202-60, which offer different attenuation values but maintain identical connector types and power ratings. Verify that any replacement part meets the specific 40 dB requirement of the current design.
