PE7202-60

Overview

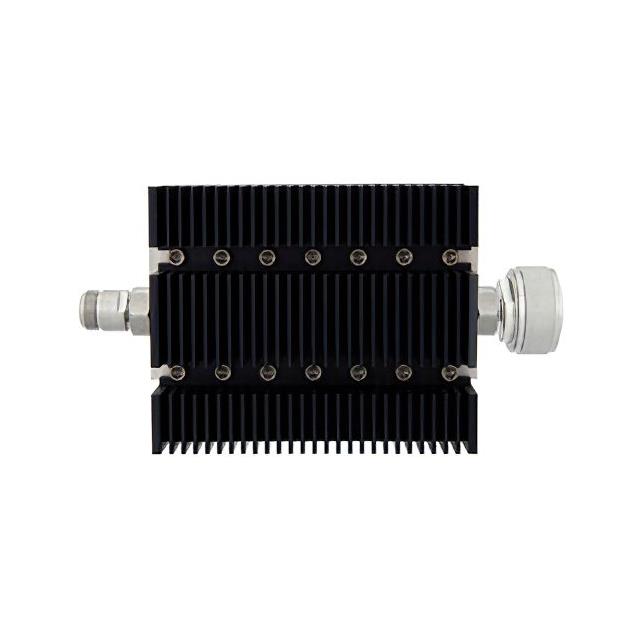

The PE7202-60 is a fixed coaxial attenuator manufactured by Pasternack. It provides an attenuation value of 60 dB with a frequency range of DC to 6 GHz. The device features N Female and 7/16 DIN Male connectors. It is rated for a maximum power handling capacity of 100 Watts at the stated attenuation value. The unit weighs 1.36 Kg and has a height of 68.58 mm.

Feature Summary

• Utilizes an in-line, resistive PI attenuator pad design
• Constructed with a directional black anodized aluminum heatsink body
• Rated for high power handling up to 100 Watts

Applications

• Microwave signal testing and measurement systems
• RF circuit power level reduction
• Signal attenuation in communication equipment

Procurement Notes

Verify connector gender and interface compatibility before ordering. Confirm that the 100 Watt power rating aligns with system requirements. Check datasheet for thermal management needs due to the heatsink design. Ensure frequency range covers operational spectrum up to 6 GHz.

Selection Notes

Select this component when precise 60 dB attenuation is required between DC and 6 GHz. Consider the physical size and weight for mounting constraints. Verify that the N Female to 7/16 DIN Male configuration matches existing infrastructure. Evaluate thermal dissipation capabilities for continuous operation.

Part Context

This part belongs to Pasternack's fixed attenuator series. It serves as a passive RF component for signal control. The specific model combines standard N-type connectivity with robust 7/16 DIN interfaces for high-power applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
