Product Detailed Parameters

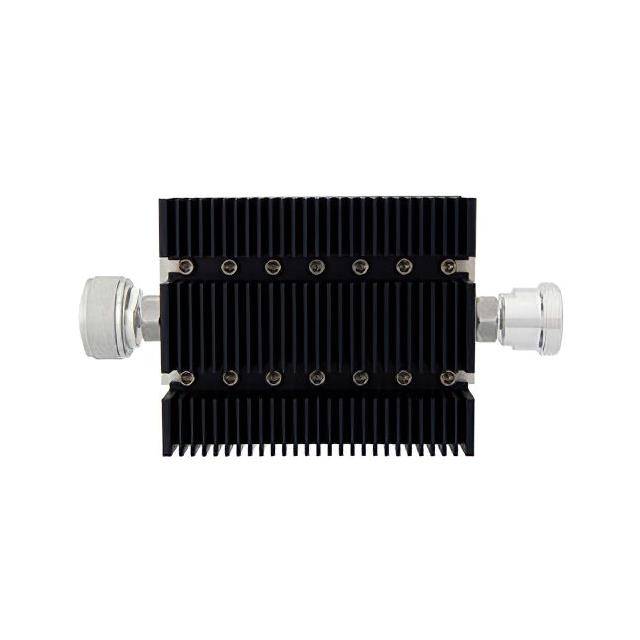

- Description：10 dB Fixed Attenuator, 7/16 DIN
- Series：-
- Mfr：Pasternack
- Package：Retail Package
- Attenuation Value：10dB
- Frequency Range：0 Hz ~ 6 GHz
- Power (Watts)：100W
- Impedance：50 Ohms
- Grade：-
- Qualification：-
- Package / Case：HEX In-Line Module
Download product information
Overview
The Pasternack PE7203-10 is a step attenuator designed for radio frequency applications. It provides precise signal attenuation within RF systems, typically operating at standard impedances such as 50 Ohms or 75 Ohms. This component features BNC connectors for secure cable assembly integration. As part of the Pasternack line, it supports stable performance in microwave and millimeter wave environments, ensuring reliable signal management for testing and measurement setups.
Feature Summary
- Provides adjustable passive signal attenuation for RF systems
- Features BNC connector interfaces for standard cable integration
- Designed for use in radio frequency and microwave applications
Applications
- RF signal path attenuation
- Microwave system testing
- Cable assembly integration
Procurement Notes
Verify the specific datasheet for the PE7203-10 to confirm impedance values and connector types. Ensure compatibility with existing BNC infrastructure. Check for any ordering suffixes that may alter specifications. Confirm availability through authorized distributors like DigiKey or Mouser Electronics. Validate technical parameters against system requirements before procurement.
Selection Notes
Select this component based on required attenuation steps and impedance matching. Ensure the BNC interface aligns with current cabling standards. Consider the frequency range capabilities for the specific application. Verify that the passive design meets thermal and power handling needs. Compare with other step attenuators if variable precision is critical.
Part Context
Pasternack specializes in RF, microwave, and millimeter wave components. The PE7203-10 belongs to their step attenuator series, which includes various impedance options. These devices are essential for controlling signal levels in complex RF networks. The brand offers extensive technical support and software tools for component integration.
Replacement Considerations
The PE7203-10 is listed as a parametric equivalent to the Pasternack PE7203-10. No alternative substitute part numbers are publicly confirmed in the provided data. Verify direct compatibility before substitution.
