PE7203-30

Overview

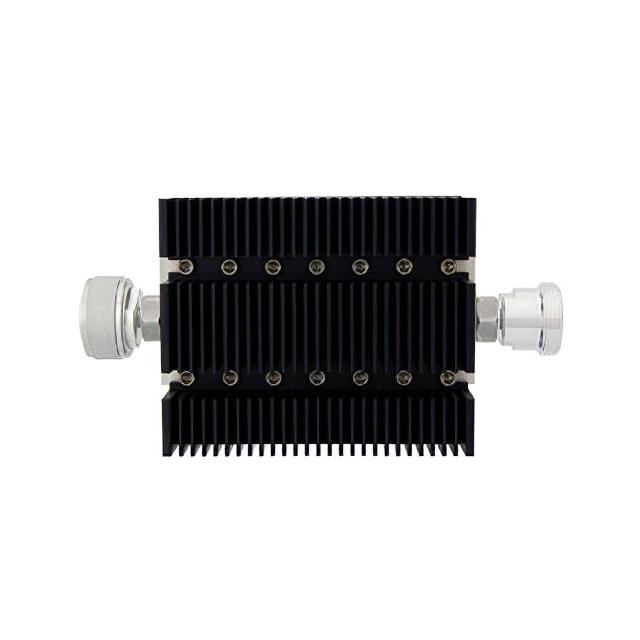

The PE7203-30 is a fixed attenuator manufactured by Pasternack Enterprises Inc. It provides an attenuation of 30 dB across a frequency range of DC to 6 GHz. The component supports a power handling capacity of 100 W and features a HEX in-line module configuration with a 50 Ohm impedance. Physical specifications include a weight of 1.36 Kg and a height of 68.58 mm.

Feature Summary

• Provides precise 30 dB signal attenuation for RF applications
• Operates effectively from DC up to 6 GHz frequency range
• Supports high power handling capability of 100 Watts
• Utilizes a robust HEX in-line module construction

Applications

• RF signal level reduction in microwave systems
• Impedance matching within 50 Ohm transmission lines
• Protection of sensitive receiver components from high power signals

Procurement Notes

Verify the specific datasheet version when sourcing this component, as manufacturer documentation may undergo revisions. Confirm that the HEX connector interface aligns with existing system requirements. Ensure the 100 W power rating meets the operational demands of the intended application environment. Cross-reference the 30 dB attenuation value with circuit design specifications to guarantee proper signal processing performance.

Selection Notes

Select the PE7203-30 when a fixed 30 dB attenuation is required within a 50 Ohm system operating up to 6 GHz. Consider the 100 W power handling capacity for high-power RF environments. The HEX in-line form factor dictates physical integration constraints. Evaluate the 1.36 Kg weight for mounting stability requirements in the final assembly.

Part Context

This component belongs to the Pasternack series of fixed attenuators designed for RF and microwave applications. It serves as a passive device to reduce signal amplitude without introducing significant distortion. The product line emphasizes durability and consistent performance across specified frequency bands for professional test and measurement equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing HEX connectors before considering alternative models.
